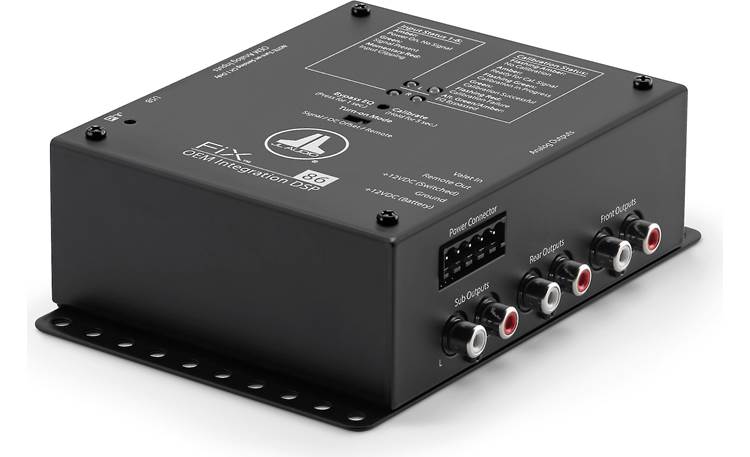

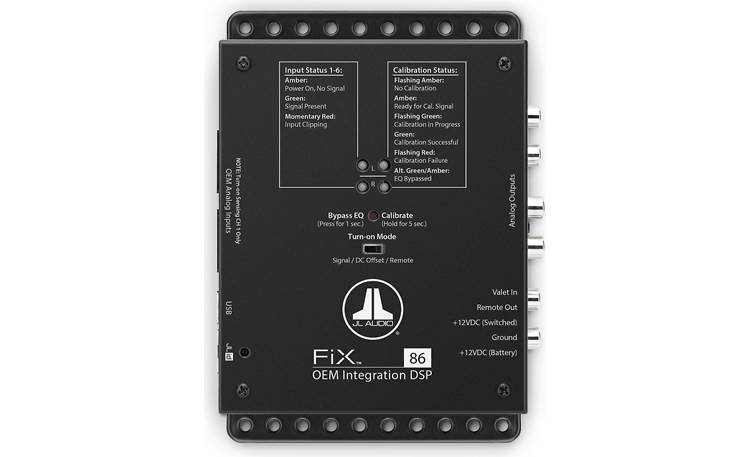

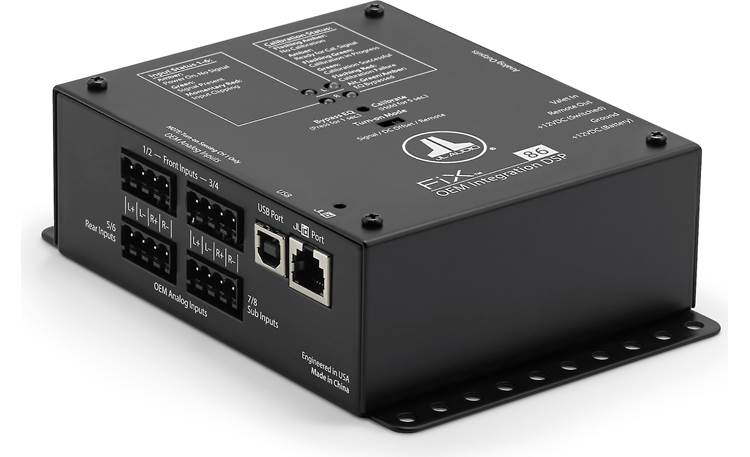

JL Audio FiX™ 86 Sound Processor for Adding Amps and Speakers to a Factory System — 6 Outputs

Product highlights:

• system integration digital sound processor with automatic time alignment, channel summing, and equalization
• removes factory sound processing for aftermarket speakers and amps

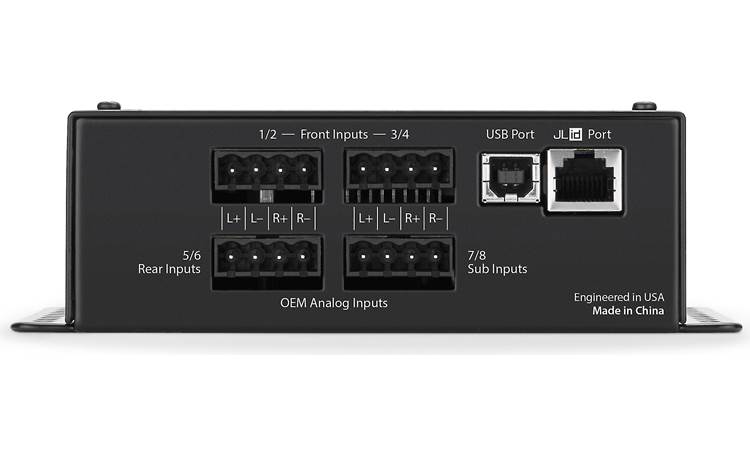

• 8 speaker-level inputs (ch 1-2: full-range; ch 7-8: subwoofer)

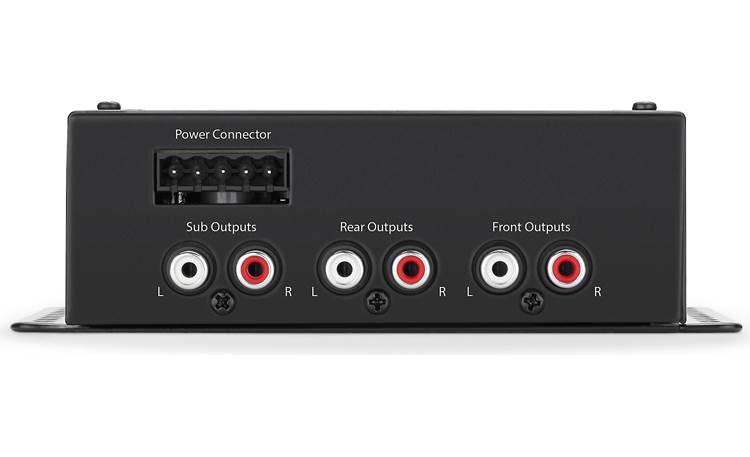

• 6 preamp outputs (3 pairs RCA) for connection to external processors and amplifiers
• 24 bit/48 KHz digital audio resolution
• calibration CD included

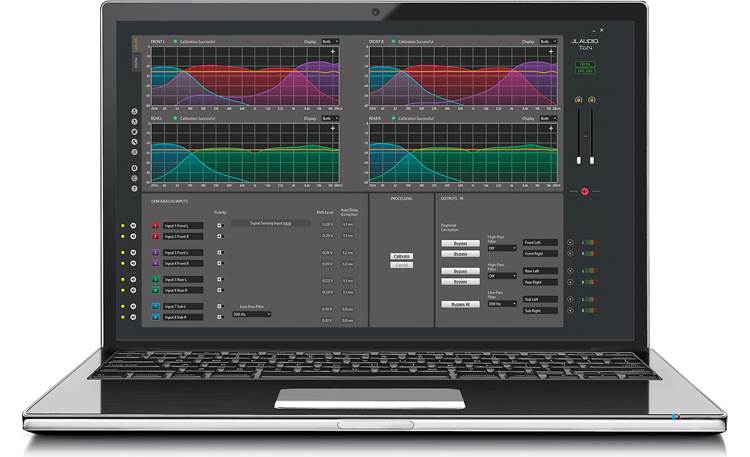

• digital signal processing via Windows PC and JL Audio's TüN software
  • displays frequency response before and after processing

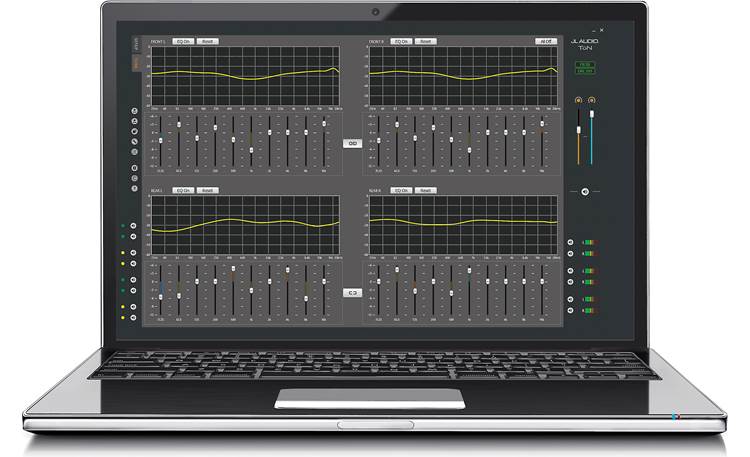

  • 10-band graphic EQ on front and rear channels
  • control FiX calibration process
  • reverse polarity of any input
  • high-pass filters on front and rear outputs

Other Features:

• signal-sensing and DC offset sensing turn-on eliminate need for remote lead
• optional dash-mountable remote (#13698128) controls Master Volume, Handsfree Optimization, and displays system Status LED
• optional LSA-4 adapter (#13698124) may be necessary in order to defeat a factory radio's load-sensing mute function
• dimensions: 4-3/8"W x 1-15/16"H x 6-3/16"D
• warranty: 2 years
• MFR # 98103
