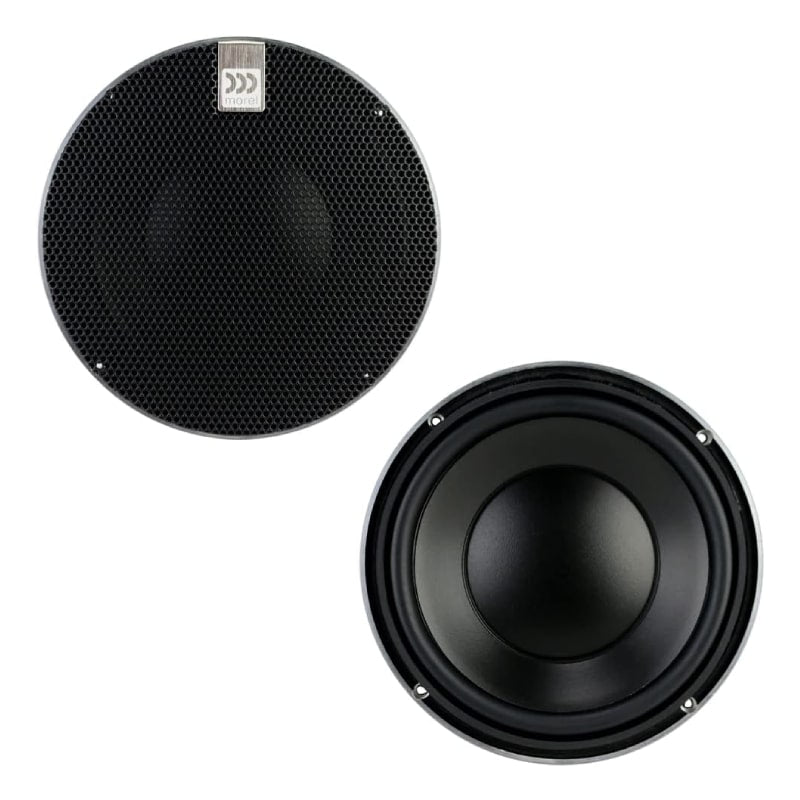

Morel Hybrid MW4 MKII, MW5 MKII, MW6 MKII Hybrid Series woofers

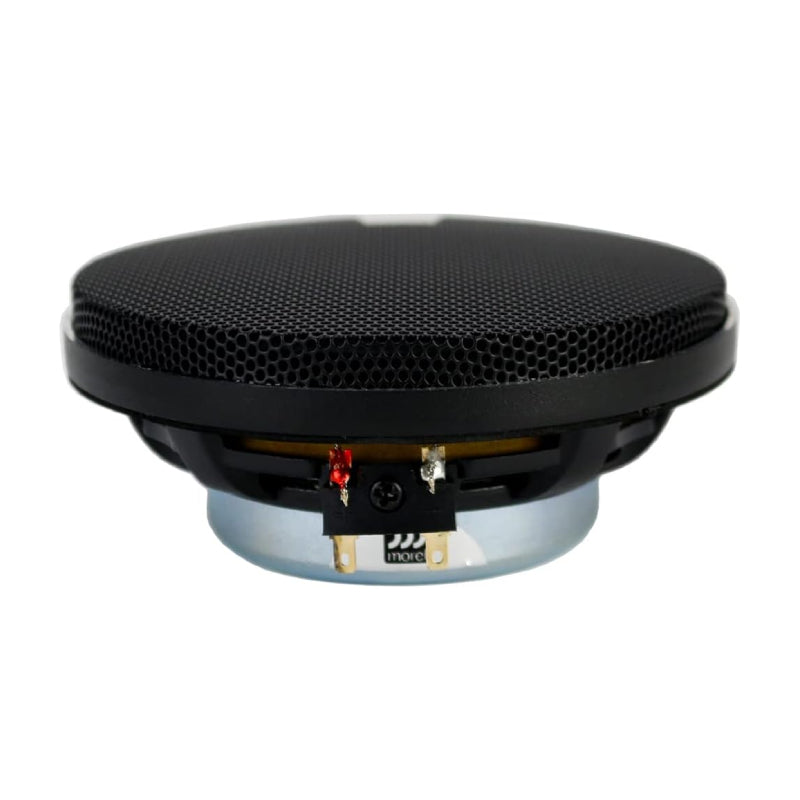

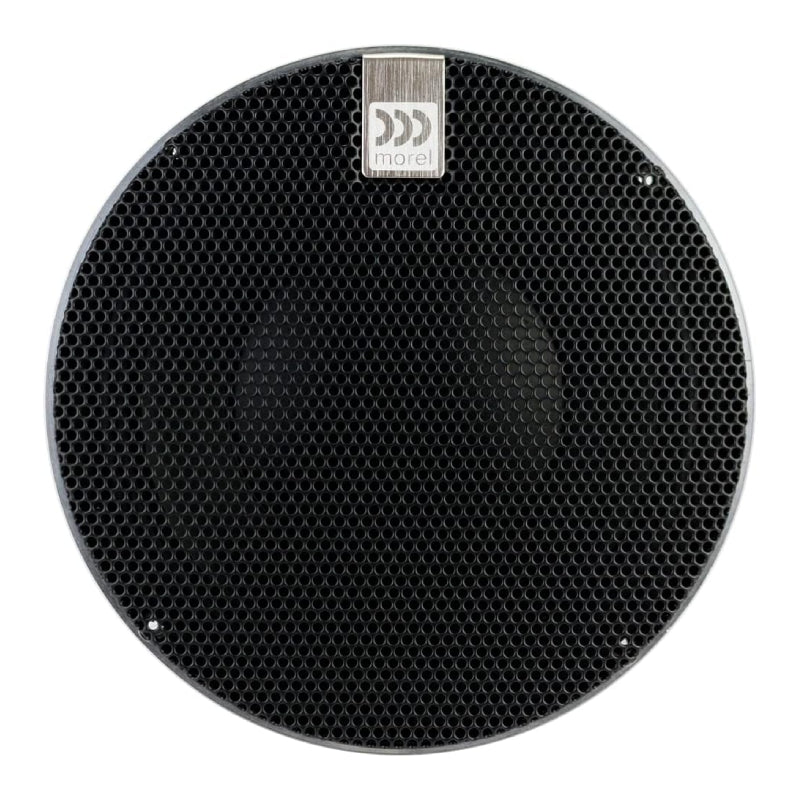

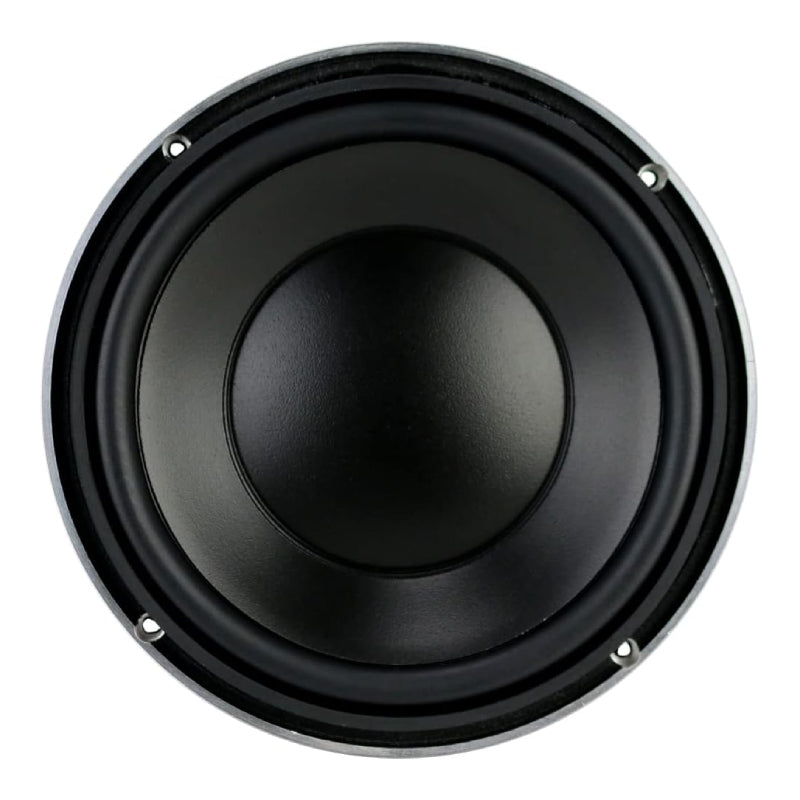

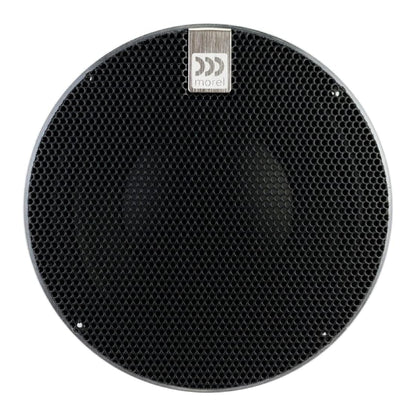

MOREL HYBRID MW4 KMII

• Diameter : 4 Inch
• Sensitivity : 89 dB
• Impedance : 4 Ohm
• Frequency Response : 50-4200 Hz
• Peak Power Handling : 300 Watts
• Top Mount Depth : 2.1 Inches
• RMS Power Handling : 100 Watts

Features:

• Core Technologies: All Hybrid MW models feature Morel’s advanced technologies.
• Aluminium Hexatech External Voice Coil: 2 ¼” coil wound on an aluminium former for stable, efficient, and linear movement, reducing distortion.
• Optimised One-Piece DPC Cone: Flat geometric plane design enhances sound dispersion and dynamics for a realistic three-dimensional sound.
• Enhanced Suspension: Improves membrane stability and movement, resulting in very low distortion at high power and better low-frequency dynamics.
• Innovative Design: Delivers powerful transient sound quality.

Specifications:

• Speaker Size: 4"
• Power Handling:
• Peak: 600 watts per pair / 300 watts each
• RMS: 200 watts per pair / 100 watts each
• Impedance: 4 Ohm
• Frequency Response: 50Hz - 4,200Hz
• Sensitivity: 89 dB
• Voice Coil: Hexatech Aluminum
• Magnet Motor: Hybrid
• EVC Structure: Yes
• Cone: One-Piece DPC
• C.A.R Filter: Controlled Acoustic Resistance
• Mounting Depth: 2.1" (50mm)

• Weight: 3
• Authorized Internet Dealer

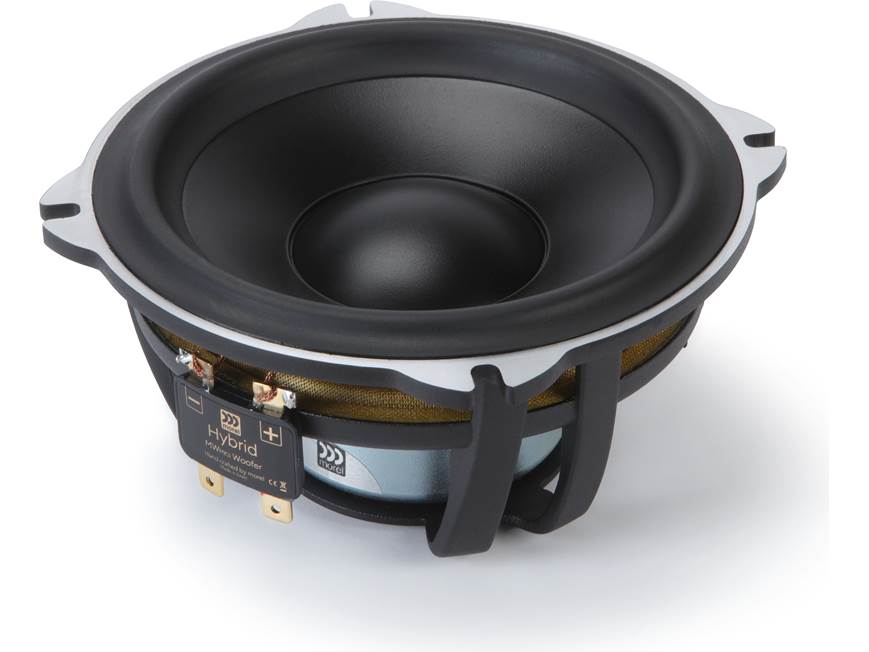

MOREL HYBRID MW5 KMII

• one-piece damped polymer woofer cone (DPC) with butyl rubber surround
• handles up to 120 watts RMS (500 watts peak power)
• frequency range: 45-3,000 Hz

Product info:

• 5-1/4" car woofers (pair)
• one-piece damped polymer woofer cone (DPC) with butyl rubber surround
• handles up to 120 watts RMS (500 watts peak power)
• frequency range: 45-3,000 Hz
• sensitivity: 90 dB
• impedance: 4 ohms
• top-mount depth: 2-7/16"
• cutout diameter: 4-13/16"
• warranty: 2 years

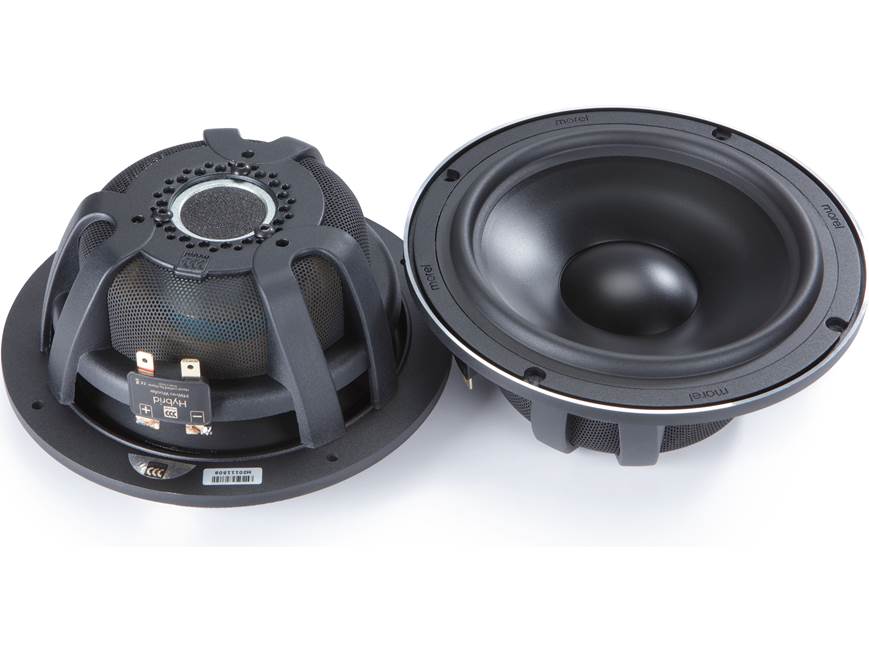

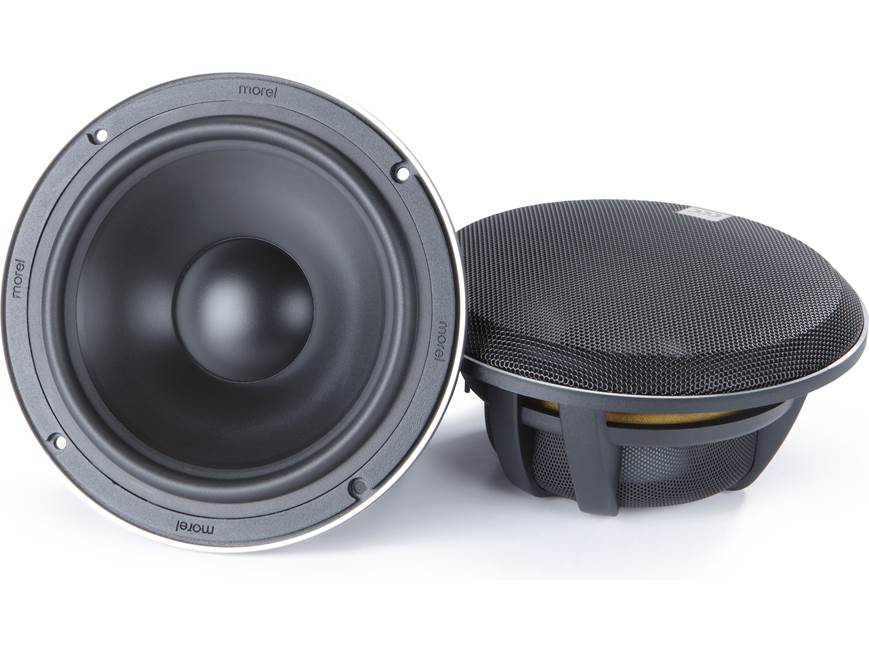

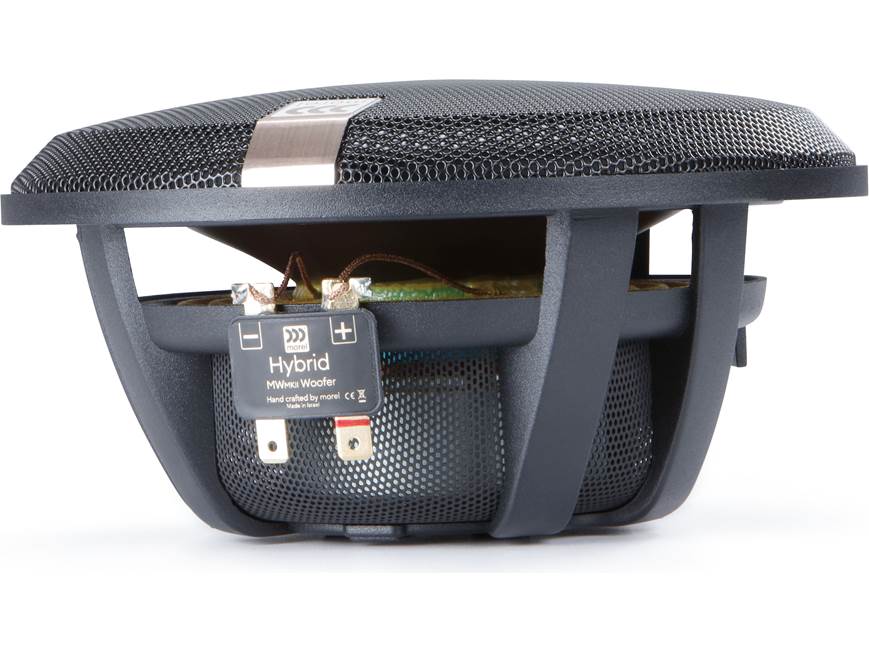

MOREL HYBRID MW6 KMII

• one-piece damped polymer woofer cone (DPC) with butyl rubber surround
• handles up to 140 watts RMS (600 watts peak power)
• frequency range: 35-3,000 Hz

Product info:

• 6-1/2" car woofers (pair)
• one-piece damped polymer woofer cone (DPC) with butyl rubber surround
• handles up to 140 watts RMS (600 watts peak power)
• crossovers required (not included)
• frequency range: 35-3,000 Hz
• sensitivity: 91 dB
• impedance: 4 ohms
• top-mount depth: 2-7/16"
• cutout diameter: 5-1/2"
• warranty: 2 years
