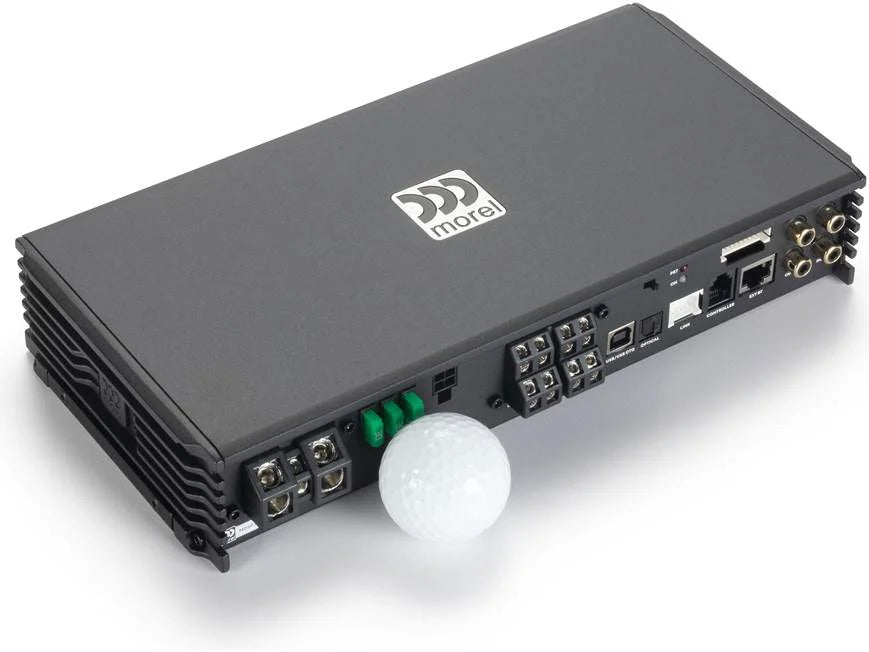

Morel MDSP6/4A, MDSP8/4A, MDSP8/6A, MDSP 10/8A MDSP Series AMPLIFIERS

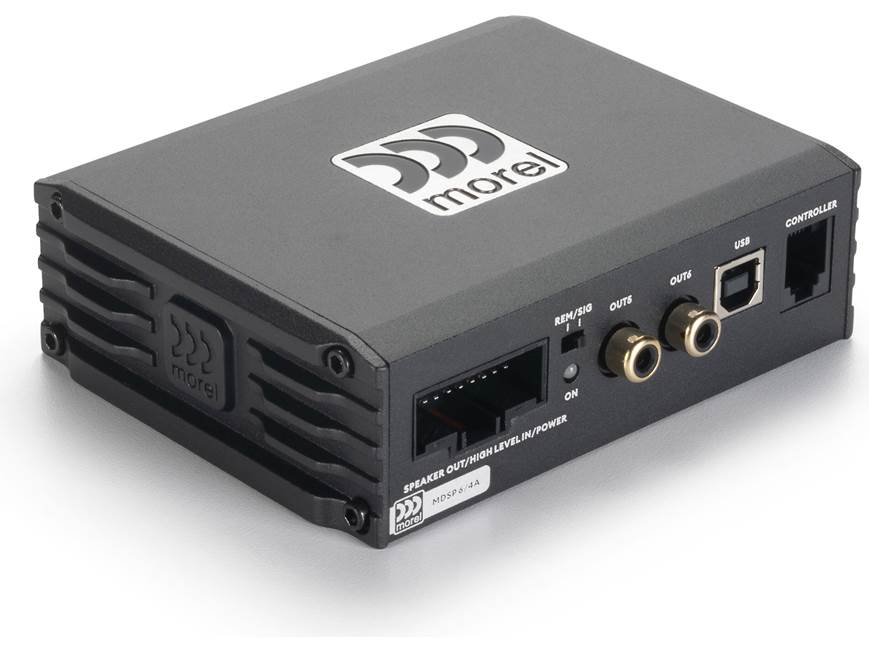

MDSP6/4A

• Bluetooth® built-in
• control via Morel DSP Software on your smartphone via Bluetooth, or computer (PC only) via USB connection
• 10-band EQ, time alignment, and more

Product info:

• 4-channel car amplifier with digital signal processing
• 25 watts RMS x 4 at 4 ohms
• Class AB amp technology
• Bluetooth® built-in
• all controls and adjustments made with Morel DSP Software app on your smartphone via Bluetooth, or computer (PC only) via USB connection
  • USB cable included
• variable high- and low-pass filters (20-20,000 Hz at 6, 12, 18, 24, 30, 36, 42, or 48 dB/octave)
• 10-band parametric EQ, parametric filters, polarity (phase) correction
• time delay/alignment for inputs and outputs

Other Features:

• 4 speaker-level inputs (summable)
• Bluetooth for connecting sources directly
• signal-sensing turn-on
• one pair of preamp outputs
• compatible with start-stop vehicle systems
• wiring, fuse, and hardware not included with amplifier
  • 10-gauge power and ground leads and a 15-amp fuse recommended
• dimensions: 4.6"W x 1.4"H x 4.57"D
• warranty: 1 year

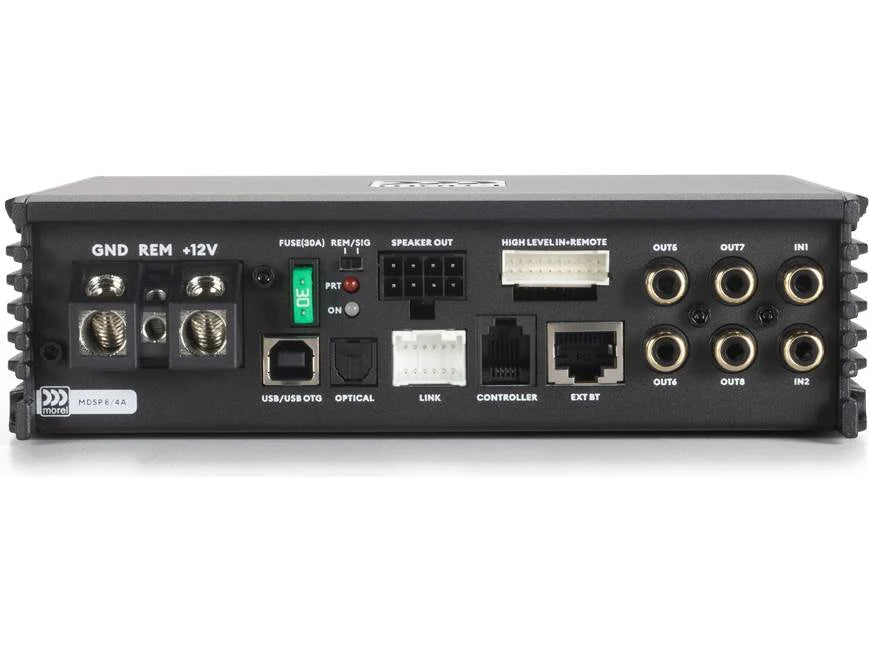

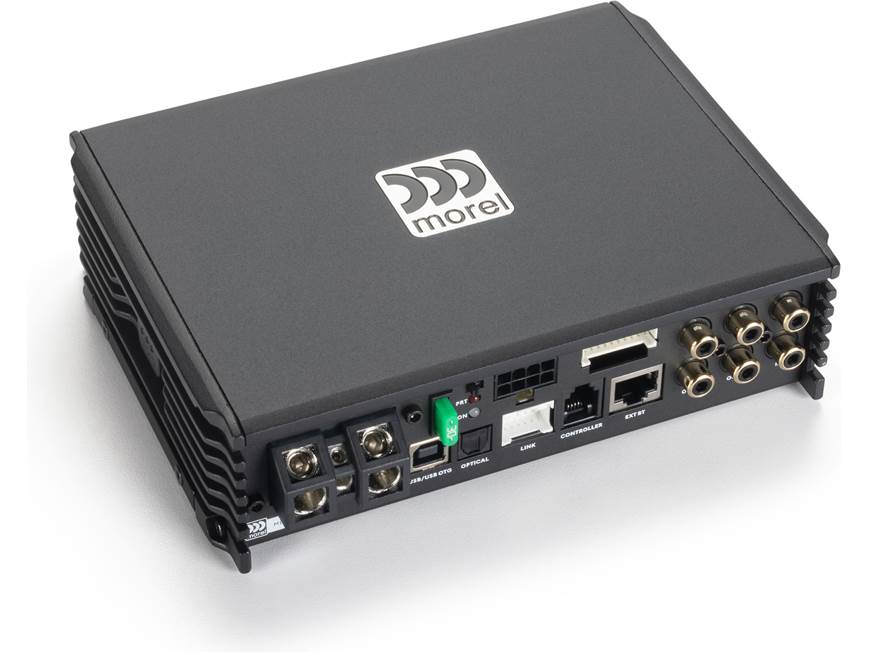

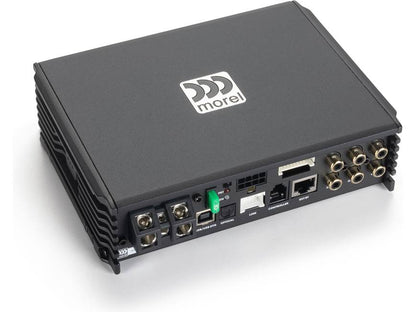

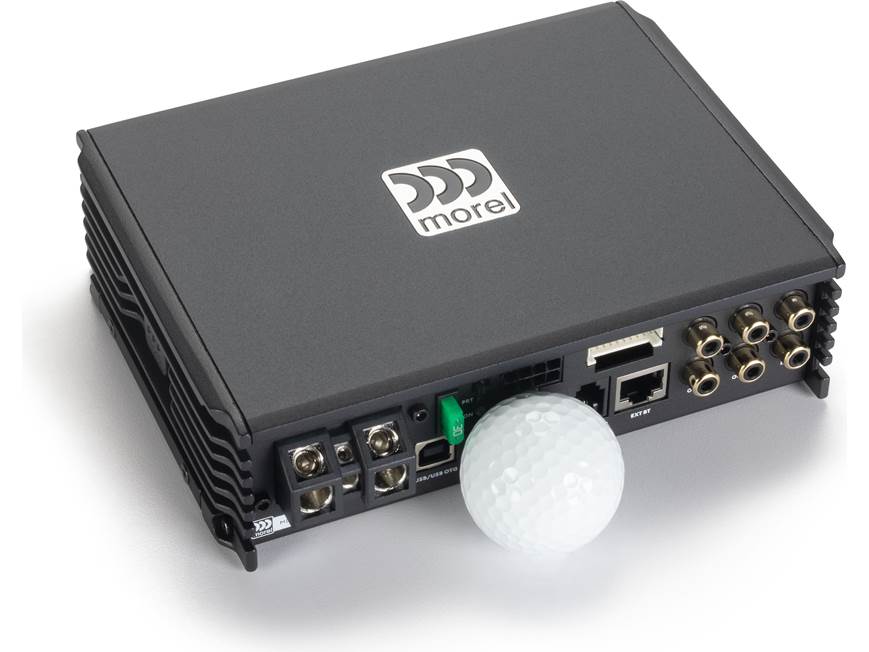

MDSP8/4A

• 160 watts RMS x 2 bridged at 2 ohms (2-ohm stable in bridged mode)
• control via Morel DSP Software app on your laptop (PC only) via USB connection
• 10-band EQ, time alignment, and more

Product info:

• 4-channel car amplifier with digital signal processing
• 80 watts RMS x 4 at 4 ohms
• 160 watts RMS x 2 bridged at 2 ohms (2-ohm stable in bridged mode)
• Class D amp technology
• all controls and adjustments made with Morel DSP Software app on your laptop (PC only) via USB connection
  • USB cable included
• optional MDSP-BT Bluetooth adapter available
• variable high- and low-pass filters (20-20,000 Hz at 6, 12, 18, 24, 30, 36, 42, or 48 dB/octave)
• 10-band parametric EQ, parametric filters, polarity (phase) correction
• time delay/alignment for inputs and outputs

Other Features:

• 8 speaker-level inputs (summable)
• optical and USB inputs for connecting sources directly
• signal-sensing turn-on
• included TuneLink cable allows you to connect one additional MDSP amp and set them up at the same time
• one pair of preamp inputs and outputs
• compatible with start-stop vehicle systems
• fuse rating: 30A x 1
• 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• dimensions: 7.08"W x 2.03"H x 5.5"D
• warranty: 1 year

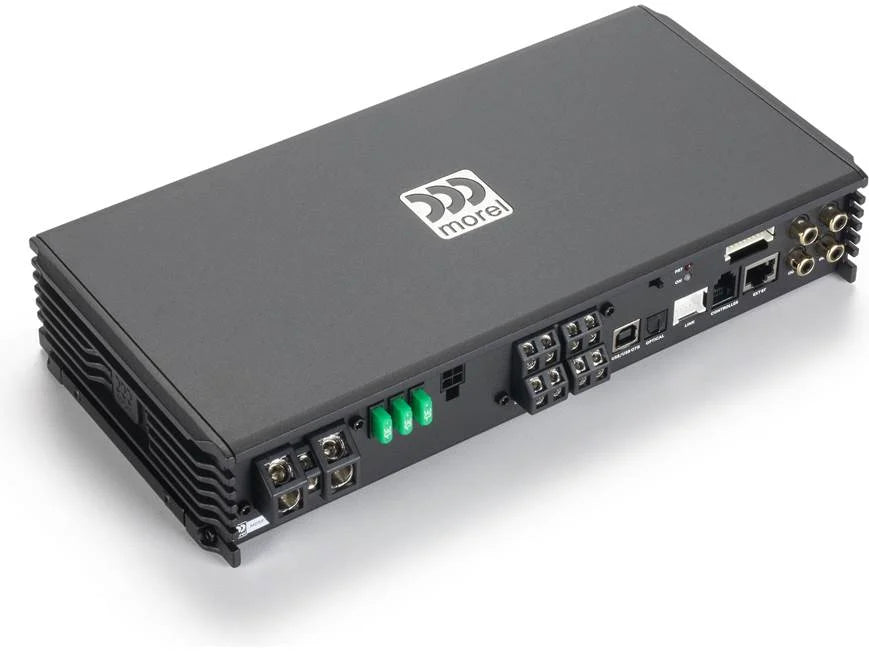

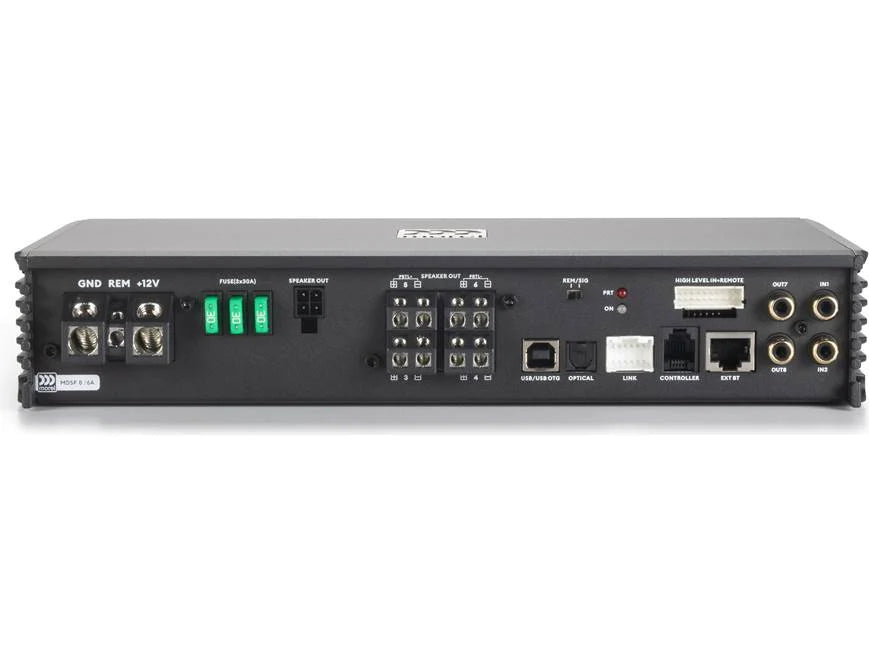

MDSP8/6A

• 320 watts RMS x 2 bridged at 2 ohms (channels 3-6, 2-ohm stable in bridged mode)
• control via Morel DSP Software app on your laptop (PC only) via USB connection
• 10-band EQ, time alignment, and more

Product info:

• 6-channel car amplifier with digital signal processing
• 80 watts RMS x 2 at 4 ohms (channels 1 and 2)
• 160 watts RMS x 4 at 4 or 2 ohms (channels 3-6)
• 320 watts RMS x 2 bridged at 2 ohms or 160 watts RMS x 2 bridged at 4-ohms (channels 3-6)
• Class D amp technology
• all controls and adjustments made with Morel DSP Software app on your laptop (PC only) via USB connection
  • USB cable included
• optional MDSP-BT Bluetooth adapter available
• variable high- and low-pass filters (20-20,000 Hz at 6, 12, 18, 24, 30, 36, 42, or 48 dB/octave)
• 10-band parametric EQ, parametric filters, polarity (phase) correction
• time delay/alignment for inputs and outputs

Other Features:

• 8 speaker-level inputs (summable)
• optical and USB inputs for connecting sources directly
• signal-sensing turn-on
• optional MDSP-TL TuneLink cable allows you to connect one additional MDSP amp and set them up at the same time
• one pair of preamp inputs and outputs
• compatible with start-stop vehicle systems
• fuse rating: 30A x 3
• 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• dimensions: 10.85"W x 2.03"H x 5.5"D
• warranty: 1 year

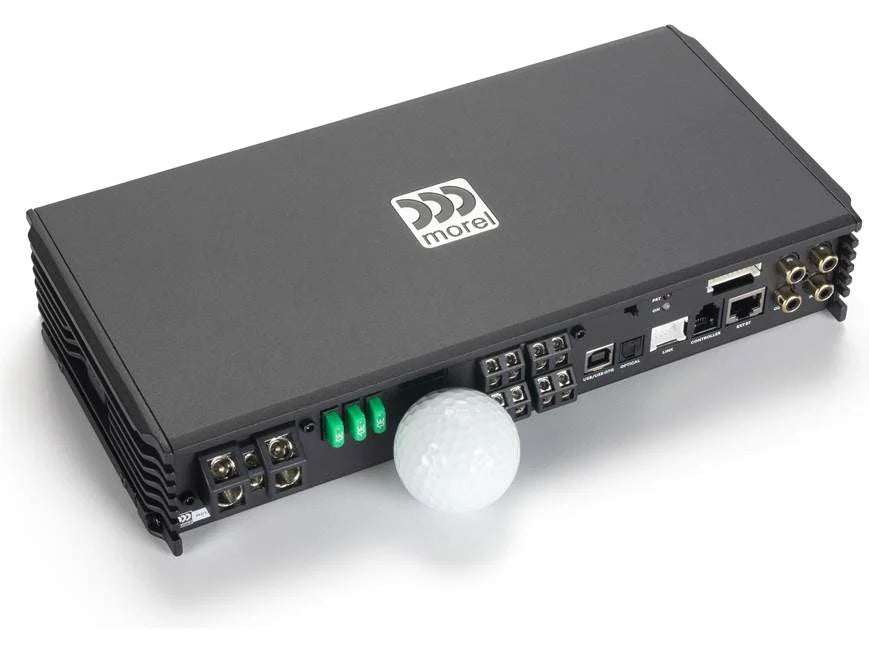

MDSP 10/8A

• 320 watts RMS x 2 bridged at 2 ohms (channels 5-8, 2-ohm stable in bridged mode)
• control via Morel DSP Software app on your laptop (PC only) via USB connection
• 10-band EQ, time alignment, and more

Product info:

• 8-channel car amplifier with digital signal processing
• 80 watts RMS x 4 at 4 ohms (channels 1-4)
• 160 watts RMS x 4 at 4 or 2 ohms (channels 5-8)
• 320 watts RMS x 2 bridged at 2 ohms (channels 5-8, 2-ohm stable in bridged mode)
• Class D amp technology
• all controls and adjustments made with Morel DSP Software app on your laptop (PC only) via USB connection
  • USB cable included
• optional MDSP-BT Bluetooth adapter available
• variable high- and low-pass filters (20-20,000 Hz at 6, 12, 18, 24, 30, 36, 42, or 48 dB/octave)
• 10-band parametric EQ, parametric filters, polarity (phase) correction
• time delay/alignment for inputs and outputs

Other Features:

• 8 speaker-level inputs (summable)
• optical and USB inputs for connecting sources directly
• signal-sensing turn-on
• included TuneLink cable allows you to connect one additional MDSP amp and set them up at the same time
• one pair of preamp inputs and outputs
• compatible with start-stop vehicle systems
• fuse rating: 30A x 3
• 4-gauge power and ground leads recommended — wiring and hardware not included with amplifier
• dimensions: 10.85"W x 2.03"H x 5.5"D
• warranty: 1 year
