Morel MXR200.4, MXR250.4I, MXR130 Virtus Nano Carbon Series crossover
Morel MXR200.4, MXR250.4I, MXR130 Virtus Nano Carbon Series crossover
Couldn't load pickup availability
MXR200.4

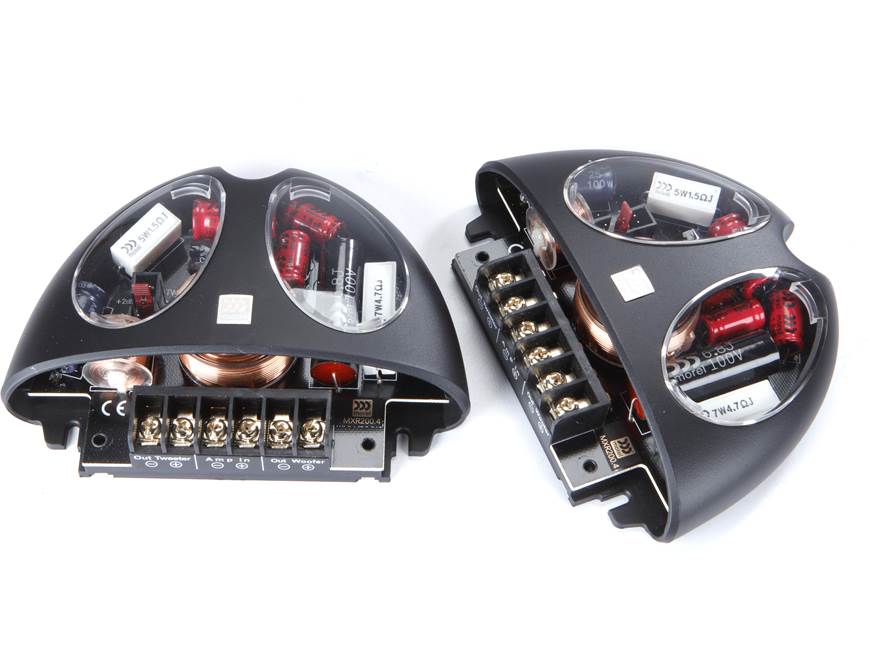

About the Morel MXR200.4
Crossovers for your Virtus Nano Carbon Series speakers
If you're custom-building a Morel Virtus Nano Carbon 2-way component system and you're not using an active crossover, you'll need a pair of Morel's MXR200.4 crossovers. These crossovers ensure that the speakers in your system receive the right frequencies for premium performance. You can set three different levels for the tweeter to control the overall tone in your vehicle.
Highlights:
- pair of passive crossovers networks for Morel Virtus Nano Carbon components
- designed for use with a 2-way system
- crossover point: 2,200 Hz at 12 dB per octave
- tweeter attenuator with level adjustment -2 dB, 0 dB, or +2 dB)
- warranty: 2 yeats
MXR250.4I

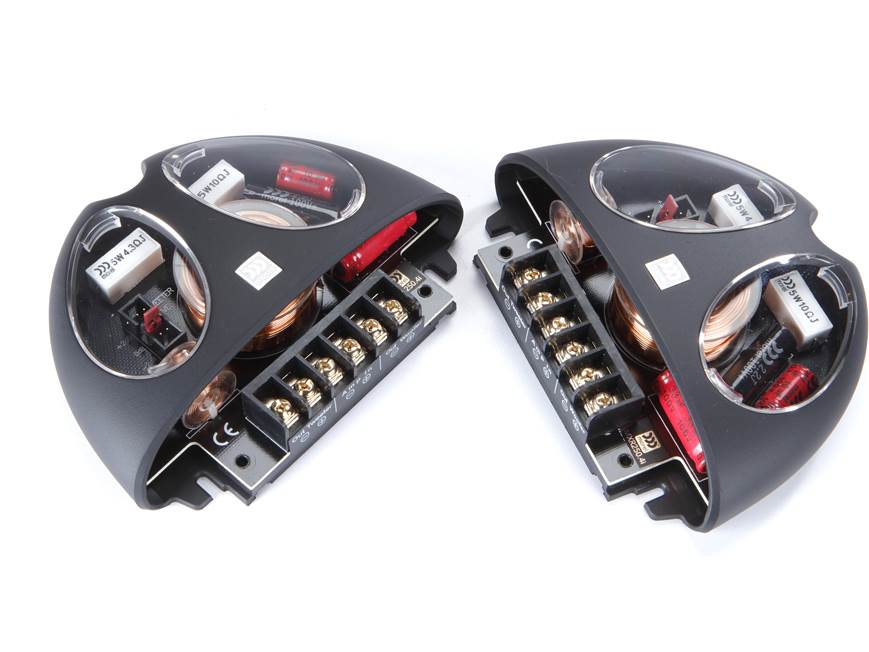

About the Morel MXR250.4i
Crossovers for your Hybrid Integra Series speakers
If you're using Morel Hybrid Integra 2-way coaxial speakers and you're not using an active crossover, you'll need a pair of Morel's MXR250.4i crossovers. These crossovers ensure that the speakers in your system receive the right frequencies for premium performance. You can set different levels for the tweeter to control the overall tone in your vehicle.
Product info:
- pair of passive crossovers networks for Morel Hybrid Integra speakers
- designed for use with a 2-way system
- crossover point: 2,200 Hz at 12 dB per octave
- two-level tweeter adjustment (-2 dB, 0 dB, or +2 dB)
- warranty: 2 years

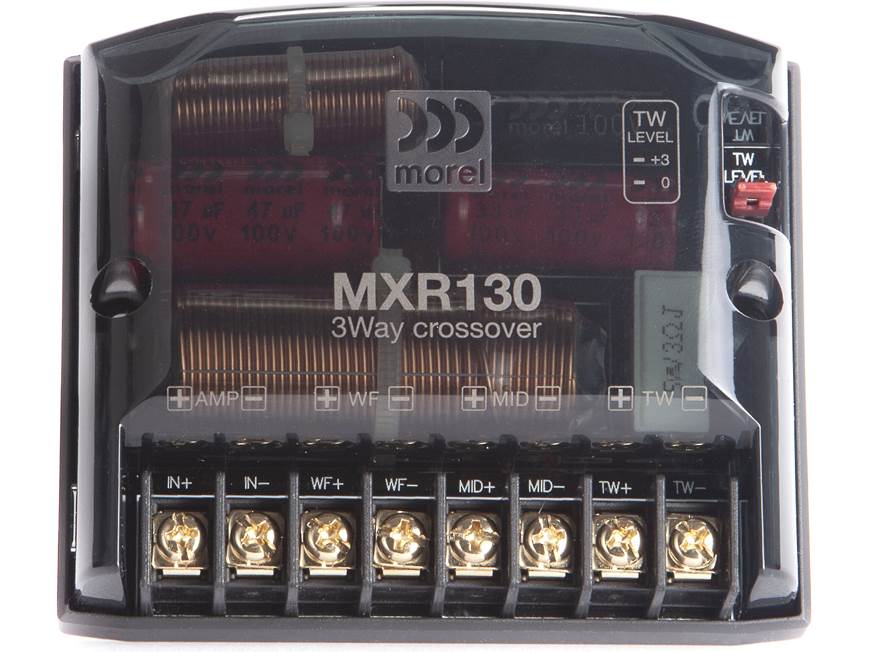

MXR130
Product info:
- pair of passive crossovers networks for Morel Virtus Nano Carbon 3-way component speakers
- crossover points: 800 Hz 12dB/octave (woofer), 6dB/octave slope at 800Hz high pass and 5kHz low pass (midrange), 6dB/octave slope at 5kHz high pass (tweeter)
- tweeter attenuator with level adjustment -3 dB, 0 dB, or +3 dB)
- dimensions: 3.9"W x 1.24"H x 3.28"D
- warranty: 2 years
- pair of passive crossovers networks for Morel Virtus Nano Carbon 3-way component speakers
- crossover points: 800 Hz 12dB/octave (woofer), 6dB/octave slope at 800Hz high pass and 5kHz low pass (midrange), 6dB/octave slope at 5kHz high pass (tweeter)
- tweeter attenuator with level adjustment -3 dB, 0 dB, or +3 dB)
