MOREL
Morel MXR240.4, MXR 250.4I, MXR 300.4 Hybrid Series crossover
Morel MXR240.4, MXR 250.4I, MXR 300.4 Hybrid Series crossover
Couldn't load pickup availability

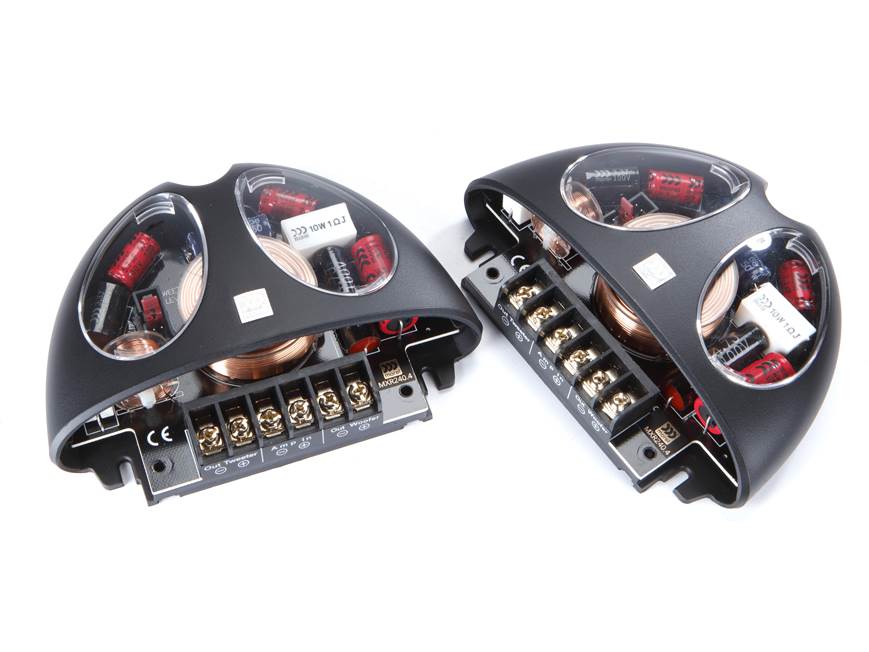

About the Morel MXR240.4
Crossovers for your Hybrid Series speakers
If you're custom-building a Morel Hybrid 2-way component system and you're not using an active crossover, you'll need a pair of Morel's MXR240.4 crossovers. These crossovers ensure that the speakers in your system receive the right frequencies for premium performance. You can set two different levels for the tweeter to control the overall tone in your vehicle.
Product info:
- pair of passive crossovers networks for Morel Hybrid components
- designed for use with a 2-way system
- crossover point: 2,200 Hz at 12 dB per octave
- tweeter attenuator with level adjustment (-2 dB, 0 dB, or +2 dB)
- warranty: 2 years

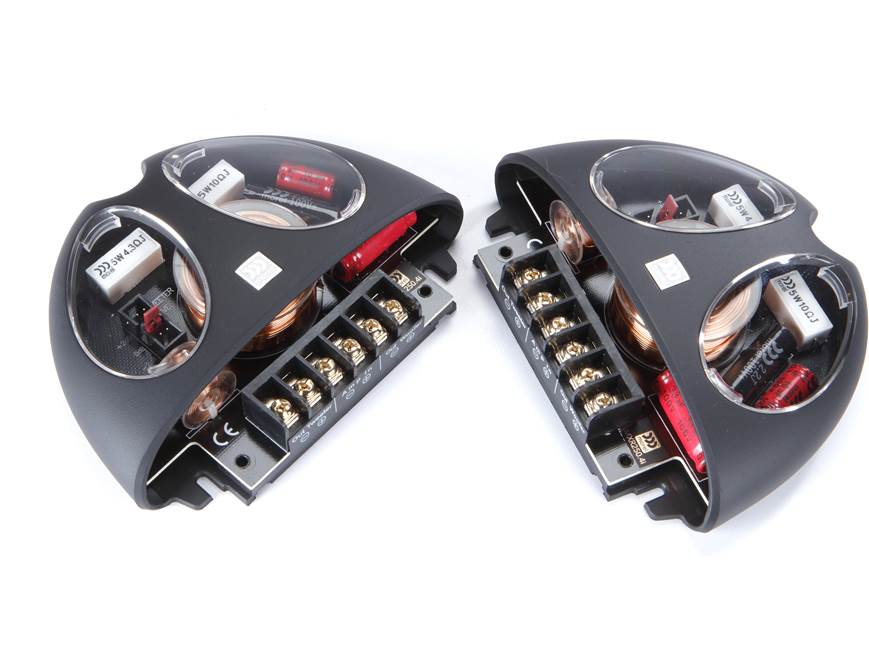

About the Morel MXR250.4i
Crossovers for your Hybrid Integra Series speakers
If you're using Morel Hybrid Integra 2-way coaxial speakers and you're not using an active crossover, you'll need a pair of Morel's MXR250.4i crossovers. These crossovers ensure that the speakers in your system receive the right frequencies for premium performance. You can set different levels for the tweeter to control the overall tone in your vehicle.
Product info:
- pair of passive crossovers networks for Morel Hybrid Integra speakers
- designed for use with a 2-way system
- crossover point: 2,200 Hz at 12 dB per octave
- two-level tweeter adjustment (-2 dB, 0 dB, or +2 dB)
- warranty: 2 years

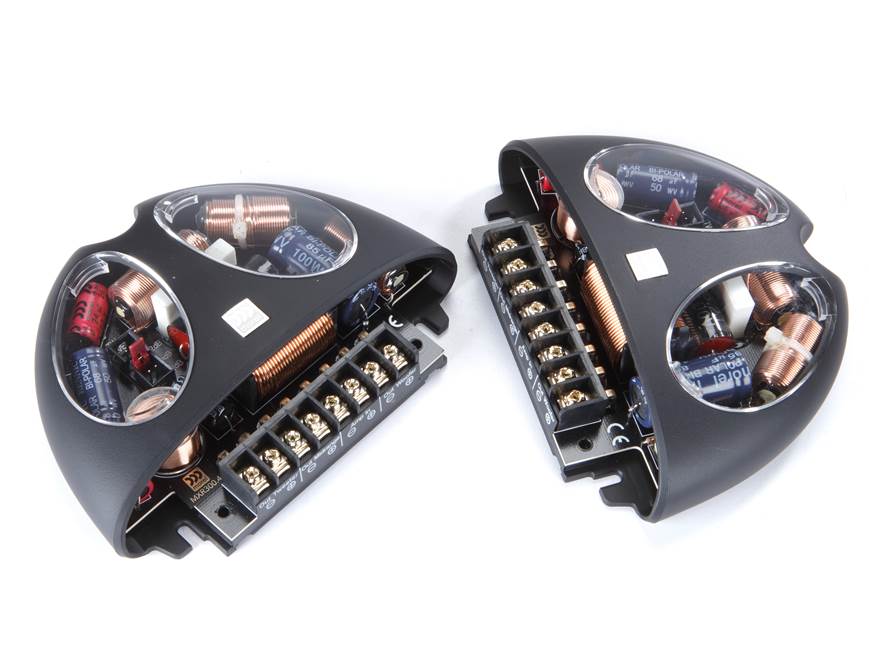

About the Morel MXR300.4
Crossovers for your Hybrid Series speakers
If you're custom-building a Morel Hybrid 3-way component system and you're not using an active crossover, you'll need a pair of Morel's MXR300.4 crossovers. These crossovers ensure that the speakers in your system receive the right frequencies for premium performance. You can set two different levels for the tweeter to control the overall tone in your vehicle.
Highlights:
- pair of passive crossovers networks for Morel Hybrid components
- designed for use with a 3-way system
- crossover points:
- woofer: low-pass at 500 Hz, 12 dB per octave
- midrange: high-pass at 500 Hz, 12 dB per octave; low-pass at 2200 Hz, 12 dB per octave
- tweeter: high-pass at 2200 Hz, 6 dB per octave
- tweeter attenuator with level adjustment (-2 dB, 0 dB, or +2 dB)
- warranty: 2 years
