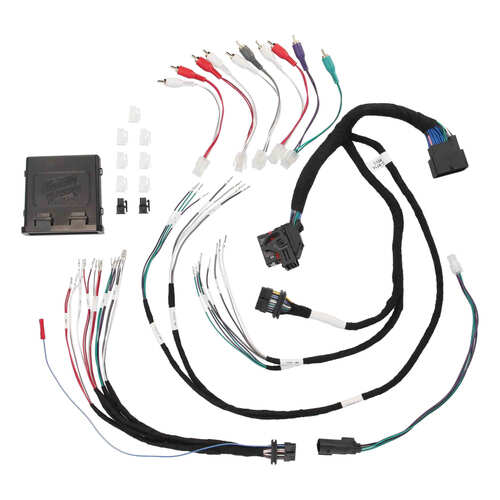

Saddle Tramp BC-DSPX-HD2 DSP and Interface in one HD FLH & FLT 2014-2021

Product highlights:

Built-in Integration and Easy Installation

• Designed for amplified and non-amplified models
• Small footprint for easy installation behind the fairing
• BC-9715 pre-wired harness included for ease of installation
• Retains balance and fade control
• Built-in clipping detection and limiting circuits
• Bass knob included
• Water-resistant case & connections
• Micro-B USB updatable
• Upgrade Your Music Experience and Customize Your Sound

10 channels of output from the DSP

• 31-band graphic EQ, or 5 band parametric EQ per channel
• 4 selectable crossover slopes (12, 24, 36, or 48db per octave)
• Built-in selectable crossover per channel (high, low & band) to achieve the perfect sound
• Independent equalization for front, rear, and subwoofer
• Time delay circuit per channel (front and rear channels can be delayed independently up to 10ms)
• All programming is done using the AXXESS DSP XL app on Android devices ONLY
• Read, write, and store configurations for future recall
• Optional password protection feature for tuning control via the mobile app
