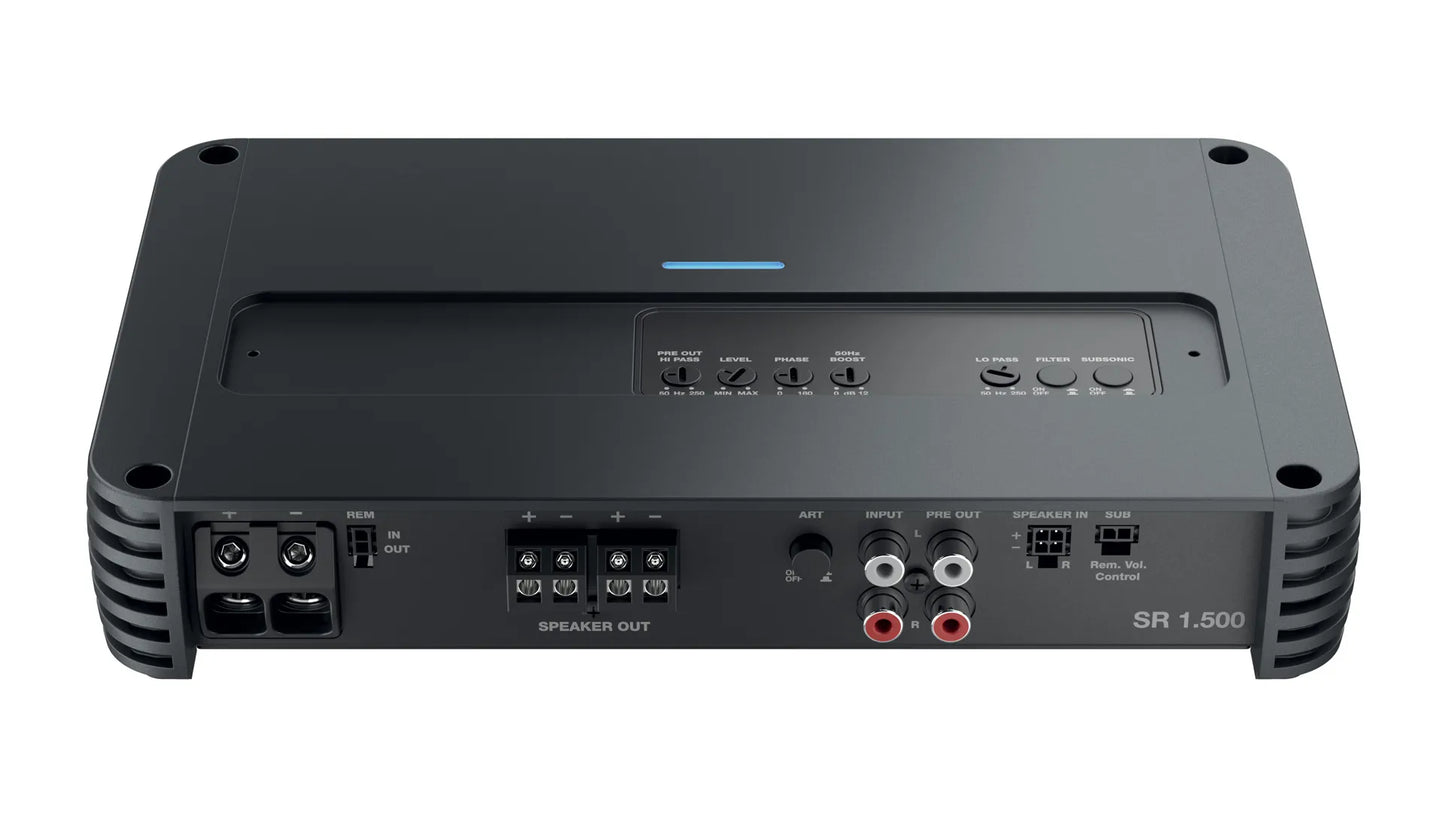

SR 1.500 Amplifier | 1000 W total power | 1 x 1000 W @ 1ohm | D-class

• Elegant and functional design with rounded corners to minimize space, facilitating installation.
• Built-in USS (Universal Speakers Simulator).
• Full built-in crossover section.
• Optional VCR-S1 remote control offers the possibility to adjust the subwoofer level (-20 / + 6 dB) to your musical preference.
• Balanced high-level inputs for connecting to the OEM head unit speaker output
• Low-level RCA for after-market speakers.
• ART (Automatic Remote On/Off) function.
• Remote IN / OUT socket to allow control of multiple amplifiers.
• PRE-OUT allows for system expansion.

AMPLIFIER TECH DATA
Channels    1
Class    D-Class
Hi Level Input    Yes
Low Level Input    Yes
Digital Input    No
Power supply voltage / fuse    11 ÷ 15 VDC / 2 x 35A
Operating power supply voltage    6.5 ÷17 VDC
Idling current    0.8 A
Idling current when off    0.02 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power    40 A
Remote OUT    6.5 ÷ 15 VDC (150 mA)
Remote IN    6.5 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)    1.5 ÷ 7 VDC

AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power    0.1 %
Bandwidth A    (-3 dB, 2 VRMS, 4 Ω): 10Hz ÷ 500 Hz
S/N ratio A    (A weighted @ 1 V): 100 dBA
Damping factor A    > 300
Input sensitivity Pre-In    0.2 ÷ 5 VRMS
Input sensitivity Speaker-In    0.8 ÷ 20 VRMS
Total Power RMS    1000 W
Minimum load impedance    1Ω
Output Power (RMS) @14.4 VDC, 1% THD    1Ch 500 W x 1 (4Ω)

1Ch 800 W x 1 (2Ω)

1Ch 1000 W x 1 (1Ω)
Adjustable Crossover    No
