Zapco

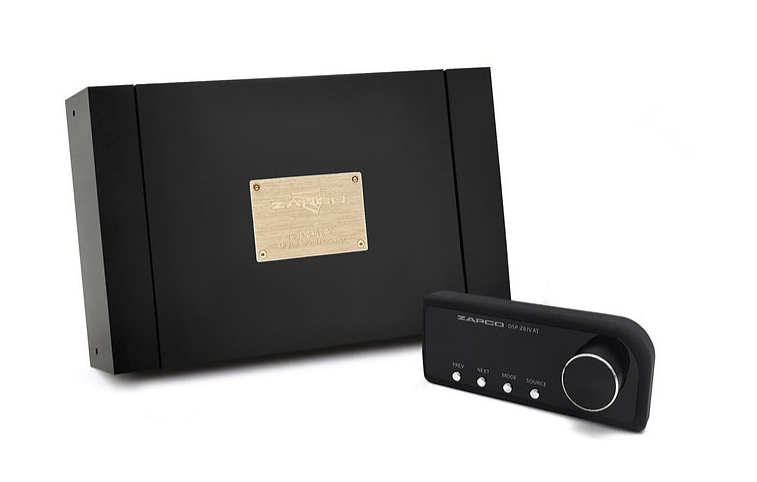

Zapco DSP-Z8-IV-AT 8-Channel Autotune Bluetooth Inputs Outputs Analog DSP 8

Zapco DSP-Z8-IV-AT 8-Channel Autotune Bluetooth Inputs Outputs Analog DSP 8

Regular price $699.99
Regular price Sale price $699.99
Sale Sold out

Product highlights:

  • DSP Processor: Cirrus Logic CS47048

  • Power: 150 MHz/32 bit/192 KHz

  • 8-Channels IN, 8-Channels OUT

  • ADC: Cirrus Logic CS47048 32 bit/192 KHz

  • ADC Dynamic Range/THD: 108 dB/-98 dB

  • DAC: Cirrus Logic CS8422 24 bit/192 KHz

  • DAC Dynamic Range/THD: 140 dB/-120 dB

  • Low level (Pre)/Sensitivity: 1-5 VRMS

  • High Level (Spk In)/Sens.: 2-20 V

  • Optical Digital IN: 24 bit-192 KHz

  • Coaxial Digital IN: 24 bit-192 KHz

  • Freq. Response (-3dB): 10 Hz - 22.5 KHz

  • S/N Ratio only DSP Digital Input: 110 dBA

  • S/N Ratio only DSP Analog Input: 106 dBA

  • THD+N only DSP Digital Input: 0,002 %

  • THD+N only DSP Analog Input: 0,005 %

  • Crosstalk at 1 Khz only DSP: 90 dB

  • F/R EQ: 1-6 ch Gr. & Par./31 poles

  • Effect EQ: 7-8 ch Gr. & Par./11 poles

  • Mute/Solo: Yes, each channel

  • Time Align. (Range/Steps): 0/15 ms / 0.02 ms

  • Max Delay (Cm/Steps): 515 cm / 0.68 cm

  • Polarity: 0/180°

  • Remote Control included

  • HD-BT Streaming (with optional HD-BT)

  • PC/Display Connection: USB/6-pin Mini DIN

  • Unit Dimensions: 213(W) x 113(L) x 50(H)
