Audison

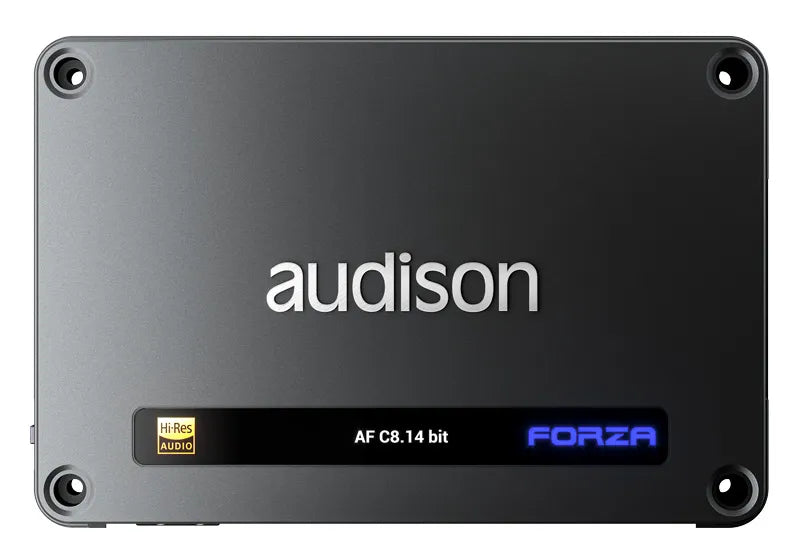

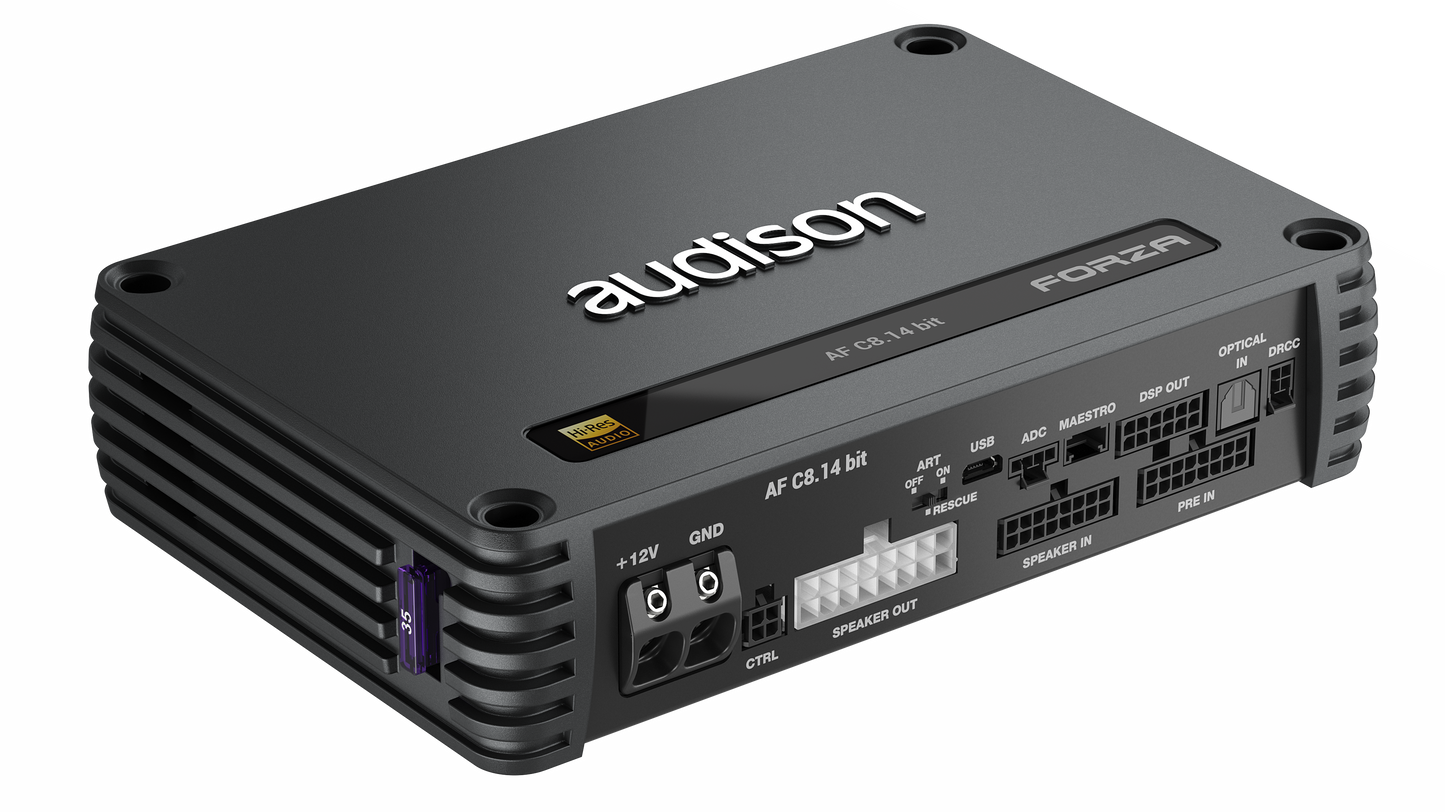

Audison AF C8.14 bit DSP Amplifier | 800 W | 14 CH DSP + 8 x 100 W @ 2 ohm | D-class Fully Bridgeable

Audison AF C8.14 bit DSP Amplifier | 800 W | 14 CH DSP + 8 x 100 W @ 2 ohm | D-class Fully Bridgeable

Regular price $1,100.00
Regular price Sale price $1,100.00
Sale Sold out

FEATURES

  • Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
  • Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
  • Next-generation bit Drive software platform
  • Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
  • Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
  • Up to 14 output channels (8 amplified, 6 optional pre-outs) controlled by the DSP to expand the system with other amplifiers
  • 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
  • Extension card slot (additional 4 analog or 1 digital inputs)
  • Electrical signal analysis for each input channel ensures proper integration and correction
  • Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
  • Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard

AMPLIFIER TECH DATA
Channels    8
Class    D-Class
Power supply voltage / fuse    11 ÷ 15 VDC / 1 x 35A
Operating power supply voltage    6.5 ÷ 17.5 VDC
Idling current    1.3 A
Standby Current Draw    1 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power    34 A
Remote IN    4 ÷15 VDC (1 mA)
Remote OUT    6.5 ÷15 VDC (150 mA)
ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers    1.5 VDC
Efficiency Rated Power    81%
