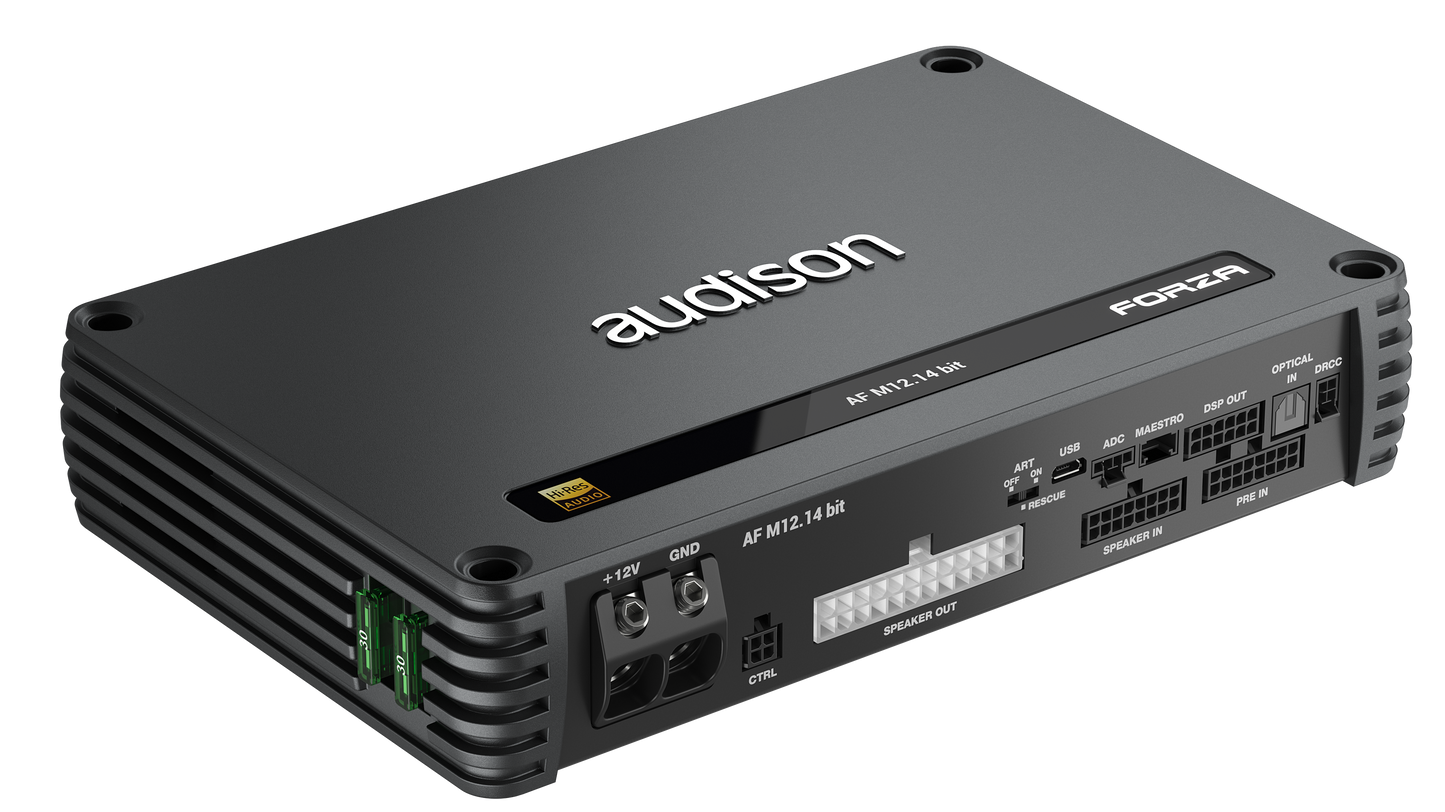

Audison AF M12.14 bit DSP Amplifier | 1080 W | 14 CH DSP + 12 x 90 W @ 2 ohm | D-class Fully Bridgeable

• Improved audio performance and power thanks to the latest generation of ADT (Audison D-Class) technology
• Unbeatable power/volume ratio up to 0.68 W RMS/cm³ reaching 82% of efficiency
• Next-generation bit Drive software platform
• Hi-Res compatibility performance, with an extended audio band up to 40 kHz, made possible by and DSP working operation at 24 bit/96 kHz
• Maximum versatility thanks to the possibility of using the bridging option for each pair of power outputs
• Up to 14 output channels (12 amplified, 2 native pre-outs) controlled by the DSP to expand the system with other amplifiers
• 8 high/low-level inputs (and an optical Toslink digital input) support total connectivity even with the most complex OEM systems
• Extension card slot (additional 4 analog or 1 digital inputs)
• Electrical signal analysis for each input channel ensures proper integration and correction
• Acoustic analysis (with your USB microphone) integrates the response graph into the equalizer display. This ensures efficient tuning and great sound!
• Advanced signal routing options allow the technician to go beyond the predefined system definitions in the Configuration Wizard

AMPLIFIER TECH DATA
Channels    12
Class    D-Class
Efficiency    80%
Power supply voltage / fuse    11 ÷ 15 VDC / 2 x 30A
Operating power supply voltage    6.5 ÷ 17.5 VDC
Idling current    1.68 A
Standby Current Draw    1.7 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power    45 A
Remote IN    4 ÷15 VDC (1 mA)
Remote OUT    6.5 ÷15 VDC (150 mA)
ART - Automatic Remote Turn on/ off from OUTPUT BTL speakers    1.5 VDC
Efficiency Rated Power    80%
