Audison

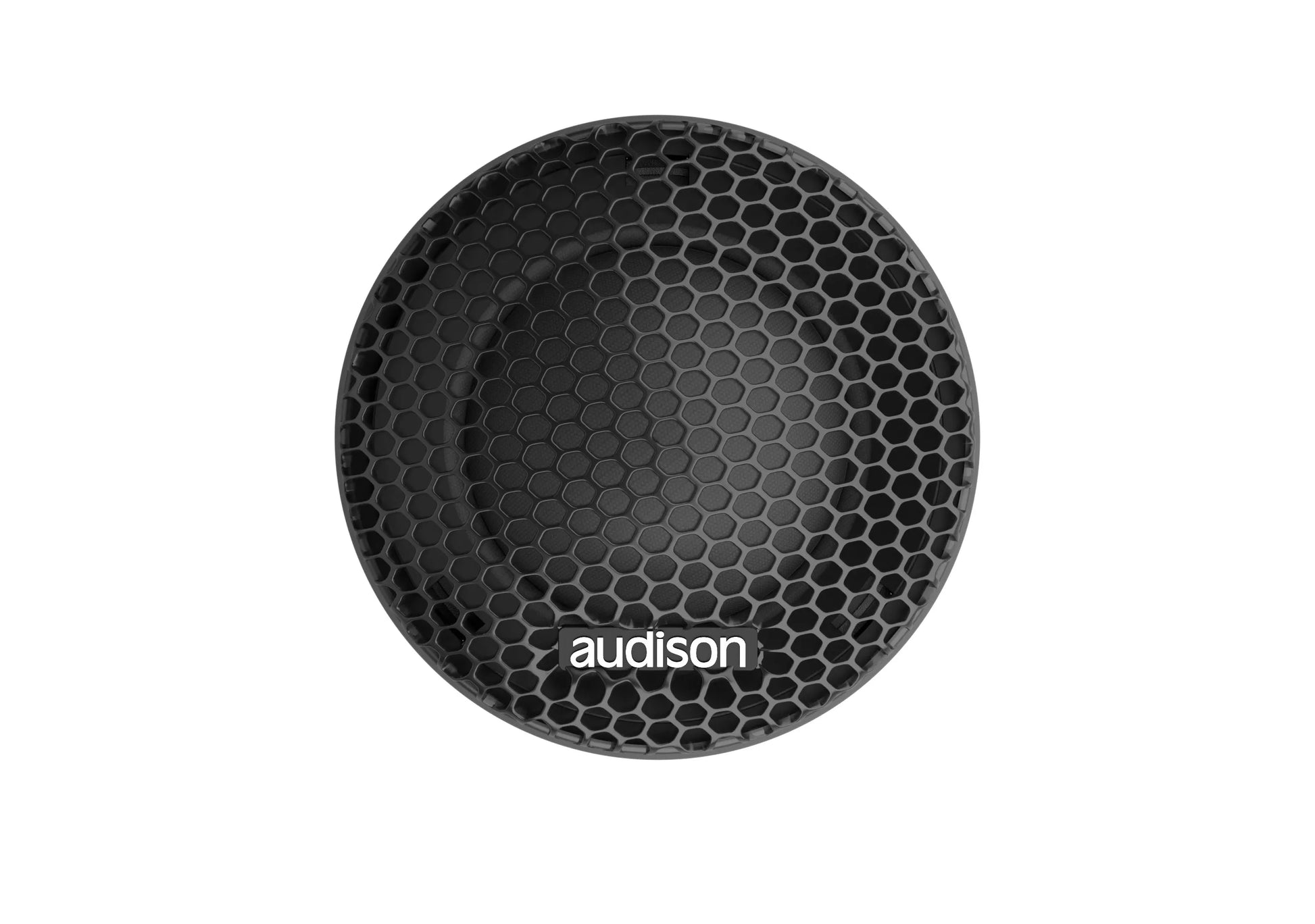

Audison AP 1P Tweeter | 150 W Peak Power | 29 mm | 8 ohm

Audison AP 1P Tweeter | 150 W Peak Power | 29 mm | 8 ohm

Regular price $220.00
Regular price Sale price $220.00
Sale Sold out

FEATURES

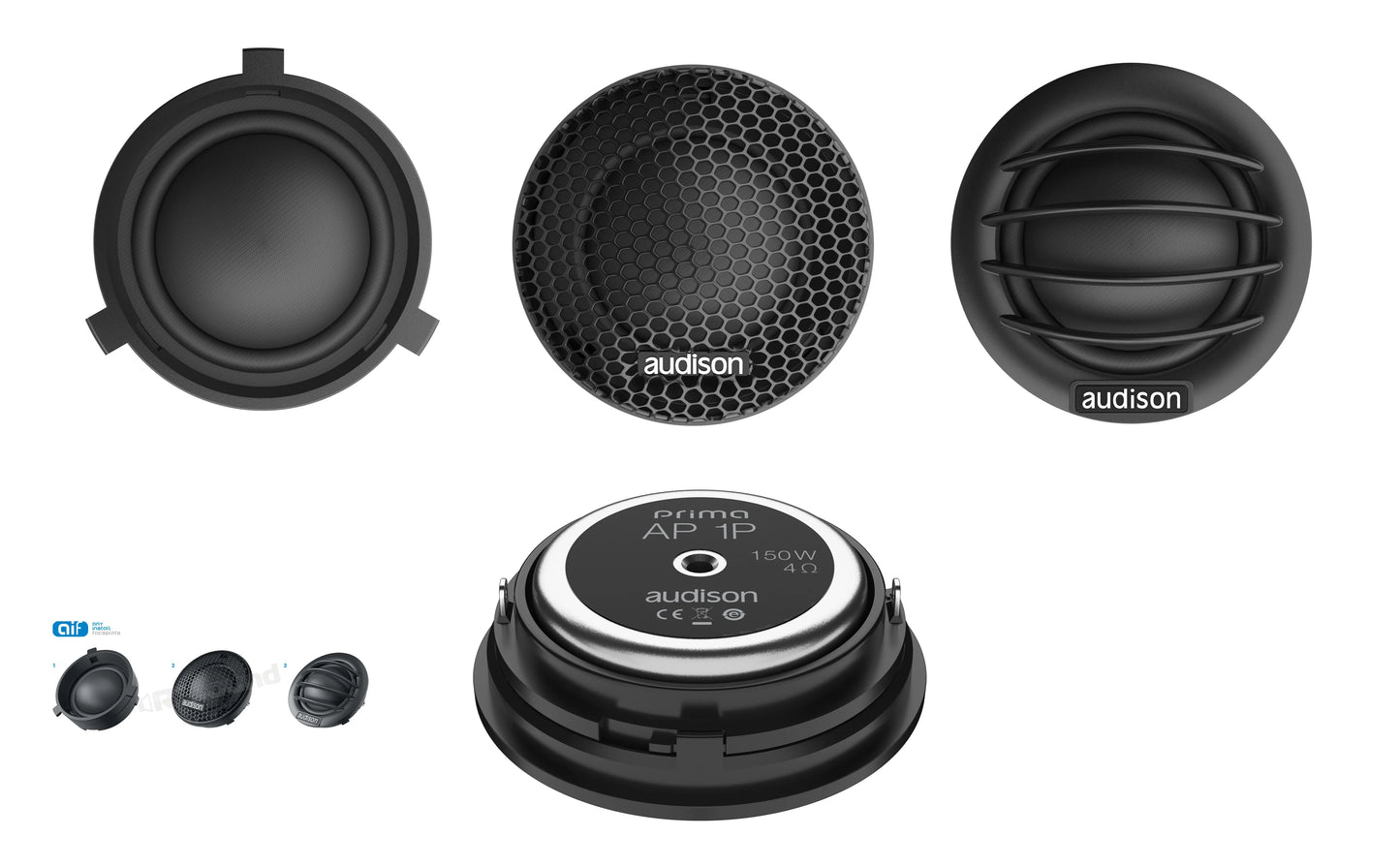

  • AIF technology (Any Install Faceplate) for total application versatility and a significant reduction in installation time.
  • Three mounting accessories are supplied to provide a solution for any type of installation.

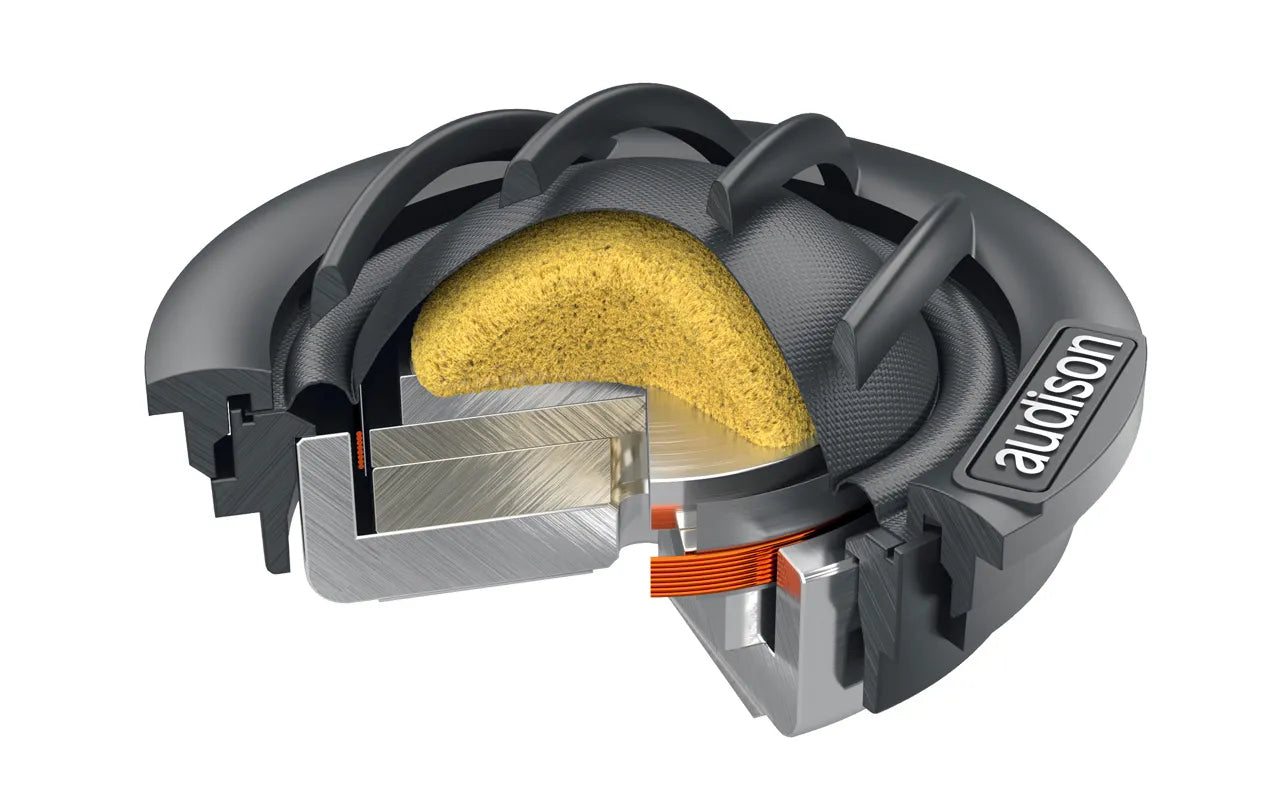

  • Magnetic group with double Neodymium tablet for an excellent high-frequency extension.
  • 1 in. CCAW voice coil for superior dynamic response.
  • Dome profile optimized with FEM simulations for a wide off-axis dispersion

TECHNICAL SPECS
Size    25 mm
Power Handling - Peak    150 W
Power Handling Crossover    Hi-pass filtered @2.5 kHz 12dB/oct
Impedance    8 Ohm
Frequency Response    1,2 ÷ 25k Hz

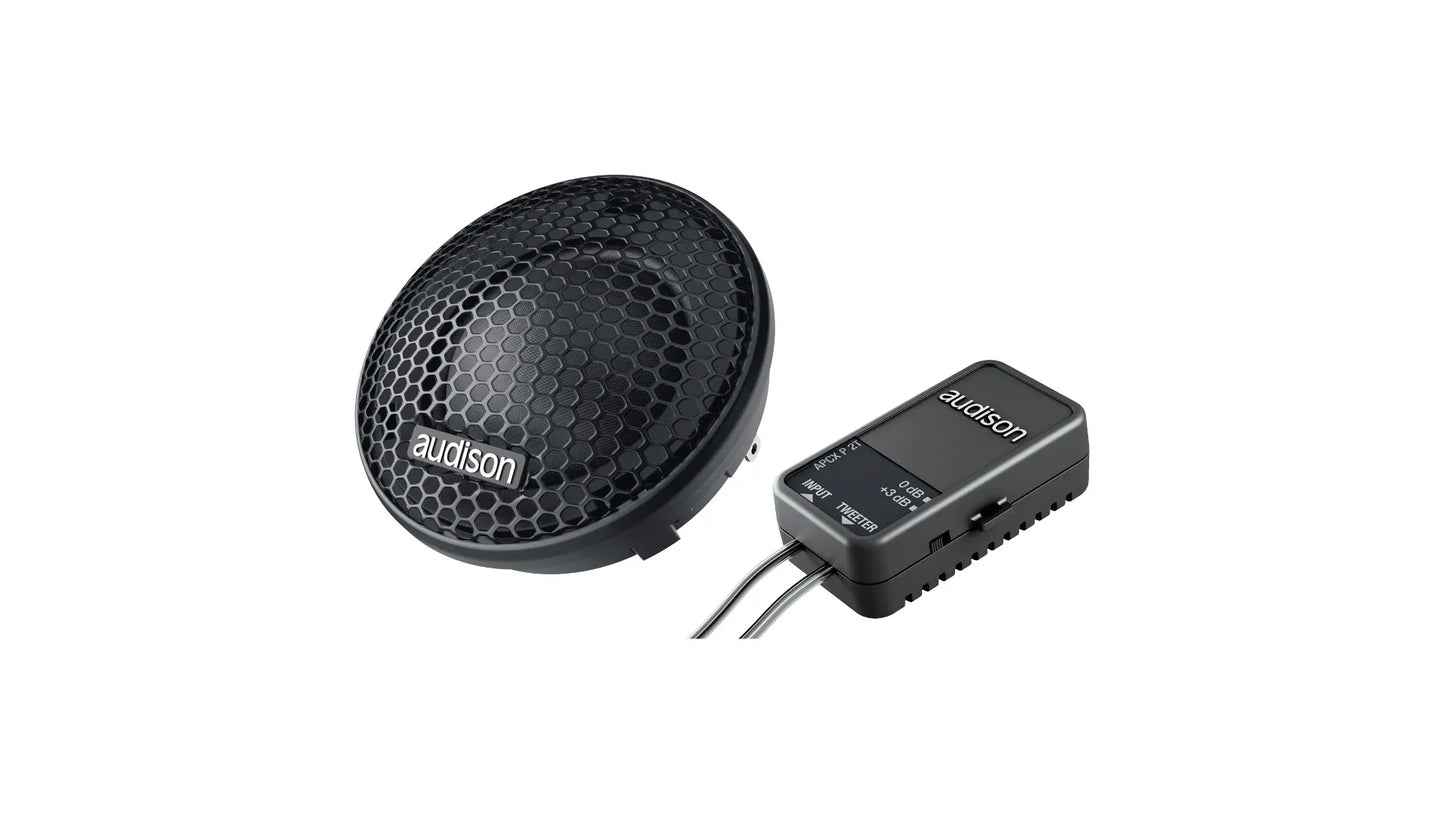

Crossover name    APCX P 2T
Crossover Type    High Pass 12 dB/oct.
Crossover point    4 kHz
Crossover adjustment    Tweeter Level: 0 / +3 dB
Magnet Material    NEODYMIUM
Voice Coil Ø    25 mm
Woofer Qes    1.74
Dome Material    TELOTON FIBRE

ELECTRIC-ACOUSTIC SPECS
D    29 mm
Re    5.75 Ohm
Fs    1600 Hz
Mms    0.23 g
Cms    0.05 mm/N
BL    2.7 T•m
Qms    4
Qts    1.21
Le Standard    0.04 mH
Spl    92 dB
