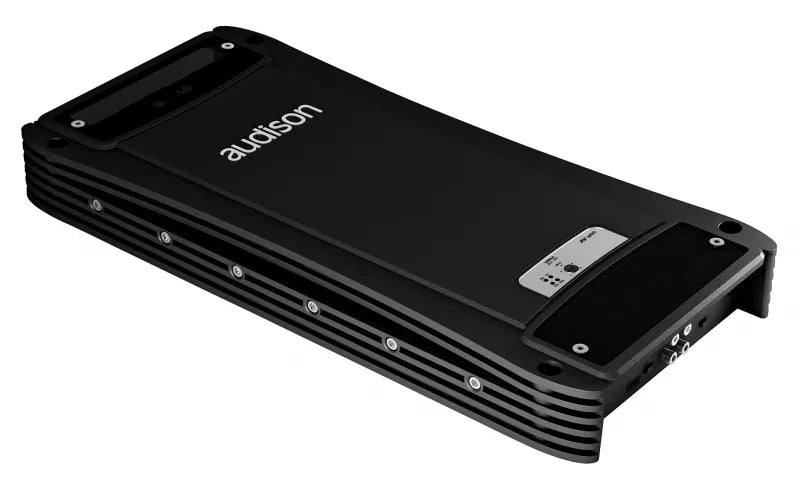

Audison AV uno Amplifier | 1300 W total power | 1 x 1700 W @ 1ohm | AB-class

•  POD (Power On Demand) circuitry to combine AB Class sound with the efficiency of the D Class.
• Suitable for high-power Dual Mono systems and subwoofer systems.
• 1 x 1700 W RMS @ 1ohm stable.

AMPLIFIER TECH DATA
Channels    1
Class    AB-Class
Hi Level Input    Yes
Low Level Input    Yes
Digital Input    No
Power supply voltage / fuse    11 ÷ 15 VDC
Idling current    2 A
Idling current when off    0.02 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power    120 A
Remote OUT    12 VDC - 50mA
Remote IN    7 ÷ 15 VDC - 1mA

AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power    0.04 %
Bandwidth A    (-3 dB, 2 VRMS, 4 Ω): 7 ÷ 20k Hz
S/N ratio A    (A weighed @1 V): 95 dBA
Damping factor A    (1kHz, 4 Ohms): 160
Input sensitivity Pre-In    0.3 ÷ 5 V RMS
Pre In Impedance    15k Ω
Input sensitivity Speaker-In    1.4 ÷ 24 V RMS
Input impedance Speaker-In    5k Ω
Total Power RMS    1300 W
Minimum load impedance    1Ω
Output Power (RMS) @14.4 VDC, 1% THD    • 1 Ch: 700 W x 1(4Ω)

• 1 Ch: 1300 W x 1(2Ω)

• 1 Ch: 1700 W x 1(1Ω)

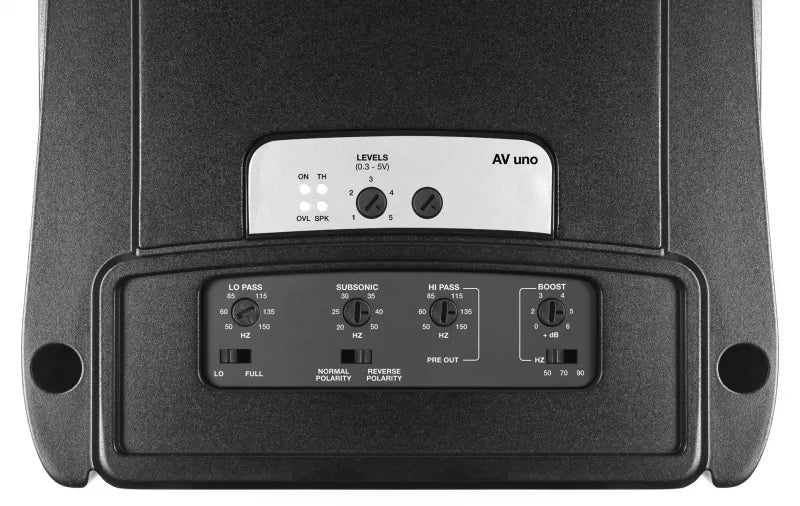

Adjustable Crossover    Yes
