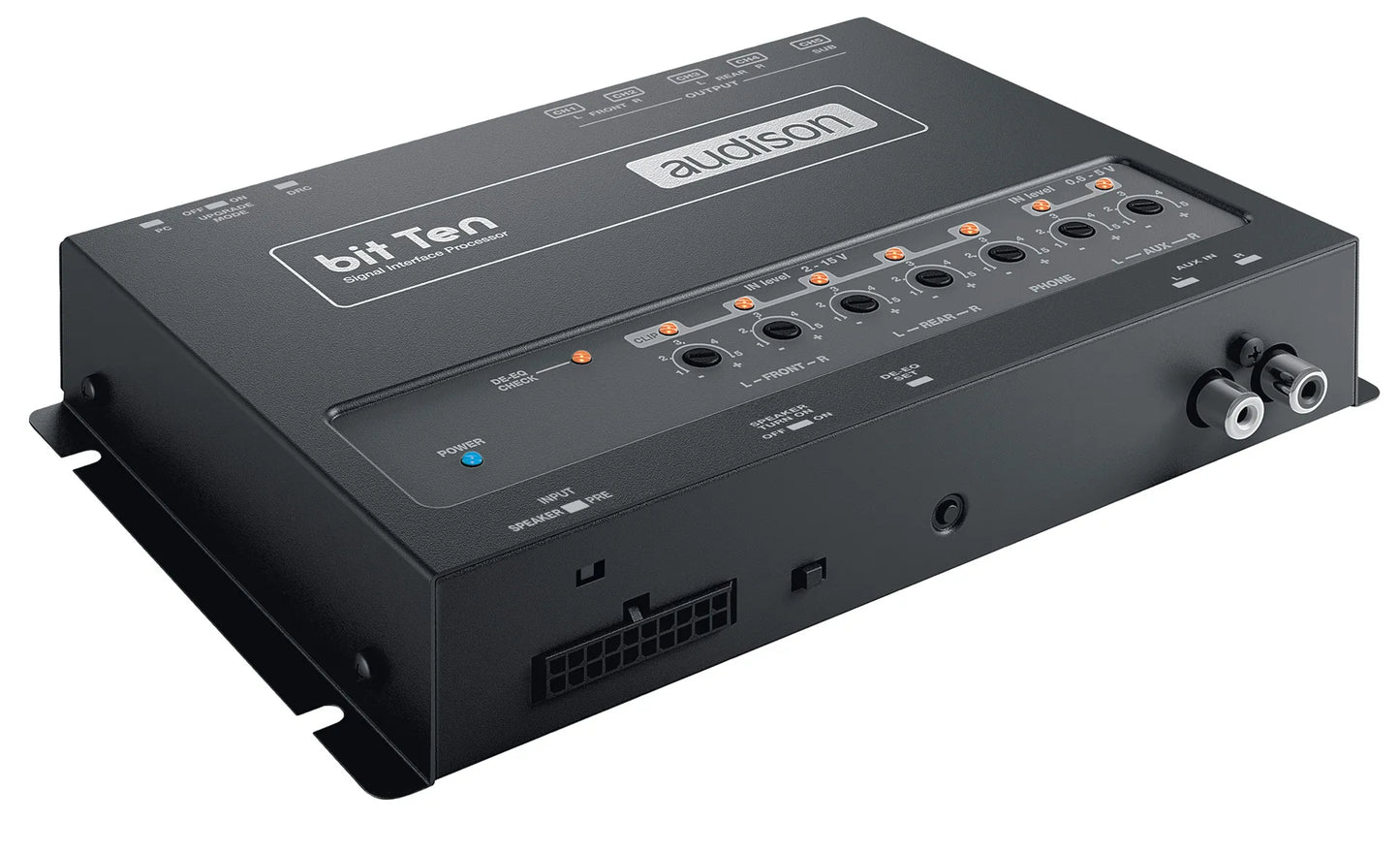

Audison bit Ten DSP | 4 input channels | 5 output channels | 24 bit / 48 kHz fixed point processing

Features:

AMPLIFIER TECH DATA
Nominal power supply voltage / Fuse    11 ÷ 15 VDC
Channels    5
Sample Rate    24 bit / 48 kHz
Hi Level Inputs    4
Low Level Inputs    4
Digital Inputs    0
Processing Method    Fixed point
Idling current    0.4 A
Switched off without DRC MP    2.5 mA
Switched off with DRC MP    4 mA
Remote IN    7 ÷ 15 VDC (1.3 mA)
Remote OUT    12 VDC (130 mA)
SIGNAL STAGE
Distortion - THD @ 1 kHz, 1 VRMS Output    0.005 %
Bandwidth @ -3 dB    10 ÷ 22k Hz
S/N ratio @ A weighted, 4 V Output, 2 V MASTER input    96 dBA
S/N ratio @ A weighted, 4 V Output, OPTICAL IN1/IN2 input    95 dBA
Channel Separation @ 1 kHz    85 dB
Input sensitivity AUX    0.6 ÷ 5 V RMS
Input impedance Pre In    15 kΩ
Input impedance Speaker In / AUX    2,2 kΩ
Max Output Level 0.1% THD    4 V RMS
INPUT STAGE
Low level (Pre)    AUX IN
High Level (Speaker In)    FL - FR - RL - RR - PHONE IN
OUTPUT STAGE
Low level (Pre)    FRONT L/R, REAR L/R, SUB
CONNECTION
From / To Personal Computer    1 x USB / B (1.1/2.0)
CROSSOVER
Filter type    Full / High Pass/ Low Pass/ Band Pass
Filter mode and slope    Linkwitz @ 12/24 dB Butterworth @ 6/12/18/24 dB
Crossover Frequency    68 steps @ 20 ÷20k Hz
Phase control    0° ÷ 180°
TIME ALIGNMENT
Distance    0 ÷ 510 cm / 0 ÷ 200.8 in.
Delay    0 ÷ 15 ms
Step    0,08 ms; 2,8 cm / 1.1 in.
