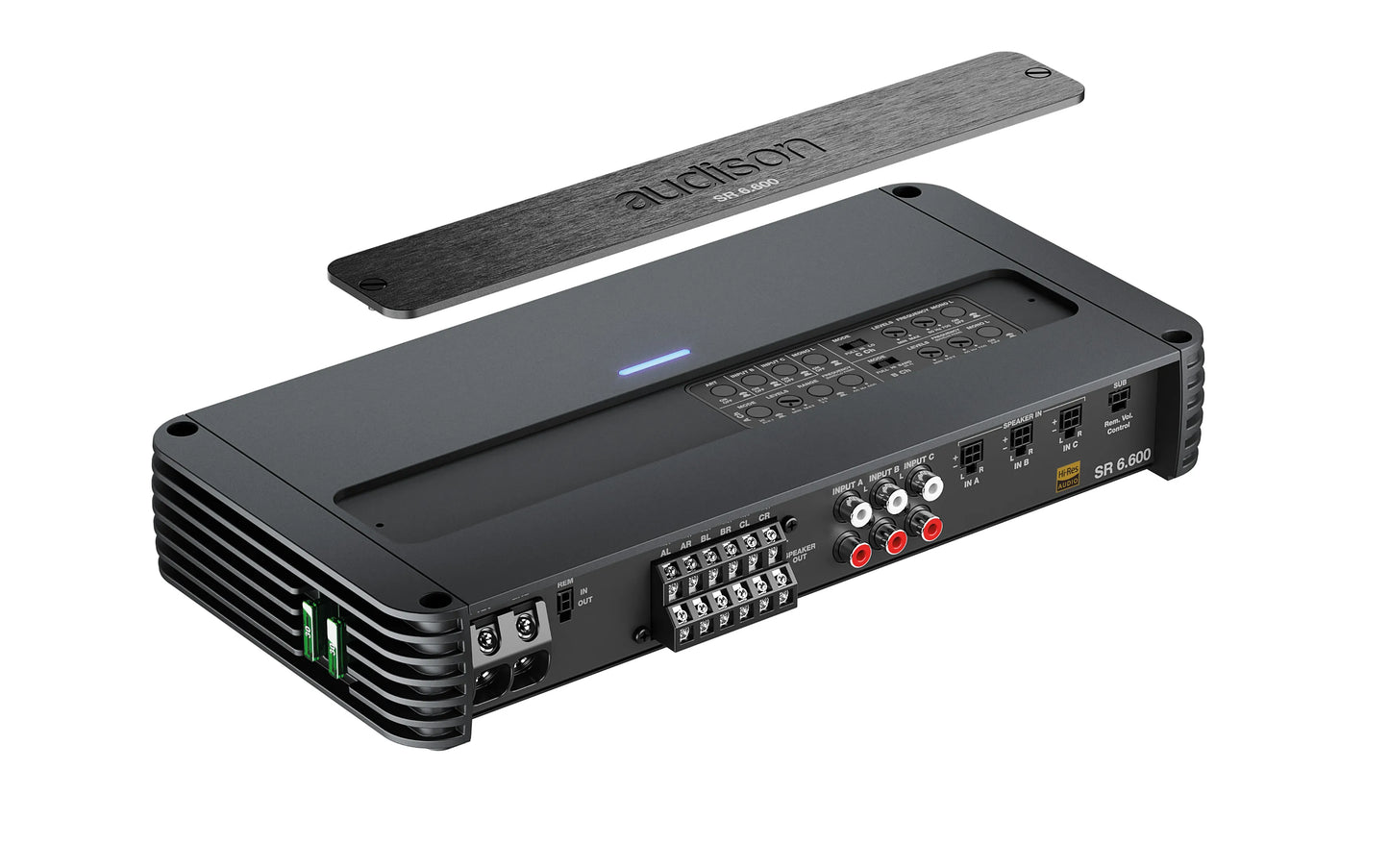

Audison SR 6.600 Amplifier | 1120 W total power | 140 W x 4 + 185 x 2 @2ohm | D-Class

• High-current capability delivers high power into the most difficult loads (1Ω Stereo, 2Ω Bridged, for 5/6)
• Staggered power optimized for a 3-way active front with higher power for woofers, or 600W of bridged power for a sub 5 ch output operation mode to create a five-channel system, with 2Ω subwoofer
• Flexible crossover filter networks deliver Active 3-way, Front/Rear/Sub, or six channels of high-passed power
• ADT (Audison D-Class) Technology 2Ω stable output providing Hi-Res certified audio performance with superior efficiency in a compact size.
• Extruded aluminum compact design with a fanless convection cooling system
• Built-in USS (Universal Speakers Simulator)
• Balanced high-noise rejection inputs for Speaker-In (for OEM head units) and RCA-In (for Aftermarket head units).
• ART (Automatic Remote Turn-On/Off) automatically turns on/off the amplifier when the OEM head-unit turns on/off (can be enabled/disabled, with Speaker-In inputs)
• Accepts up to 40-volt input signal (Speaker-In)
• Bass Boost(50 Hz) adjustable up to 12 dB, to increase the subwoofer punch
• Lo-Pass and Hi-Pass 12 dB adjustable (50 Hz to 5000 Hz) filters, providing the ability to build a 3-way system, a front 2-way + rear system, or a front 2-way + one powerful subwoofer (2Ω)
• Optional VCR-S2/ARC 01 Remote Volume Control provides the ability to adjust the OUT 5/6
• volume level from the dashboard

AMPLIFIER TECH DATA
Channels    6
Class    D-Class
Efficiency    >87%
Hi Level Input    Yes
Low Level Input    Yes
Digital Input    No
Power supply voltage / fuse    11 ÷ 17 VDC
Operating power supply voltage    11 ÷ 17 VDC / 2 x 30A
Idling current    2.2 A
Idling current when off    0.04 mA
Consumption @ 14.4 VDC, 2Ω, Max Musical Power    54 A
Remote OUT    4 ÷ 15 VDC (150 mA)
Remote IN    4 ÷ 15 VDC (1 mA)
ART - Automatic Remote Turn on/off from OUTPUT BTL speakers (Selectable)    1.5 ÷ 7 VDC

AMPLIFIER STAGE
Distortion - THD @ 100 Hz, 4Ω, 70% Rated Power    0.05 %
Bandwidth A    10Hz ÷ 42 kHz
S/N ratio A    102 dBA
Damping factor A    A Ch/B Ch 100
C Ch 400
Input sensitivity Pre-In    0.32 ÷ 8 VRMS
Pre In Impedance    >10 kOhm
Input sensitivity Speaker-In    1.6 ÷ 40 VRMS
Input impedance Speaker-In    3Ohm ÷ 100kOhm (it depends by the Polyfuse specifications)
Total Power RMS    1120 W
Minimum load impedance    Ch 1-4: 2Ω

Ch 5-6: 1Ω

1+2/3+4 Bridged: 4Ω

5+6 Bridged: 2Ω

Output Power (RMS) @14.4 VDC, 1% THD    6Ch mode

@4Ω: 85 x 4 + 110 x 2

@2Ω: 140 x 4 + 185 x 2

Ch1-4 @4Ω, Ch5-6 @1Ω: 75 x 4 + 340 x 2

Ch1-4 @2Ω, Ch5-6 @1Ω: 140 x 4 + 300 x 2

5Ch mode

@4Ω: 85 x 4 + 370 x 1 (Ch5/6 bridged)

@2Ω: 130 x 4 + 600 x 1 (Ch5/6 bridged)

4Ch mode

@4Ω: 280 x 2 (bridged) + 110 x 2

@2Ω: 130 x 2 + 260 x 1 + 600 x 1

3Ch mode

@4Ω: 280 x 2 + 370 x 1 (Ch5/6 bridged)

280 x 2 (Ch1-4 @4Ω) + 600 x 1 (Ch5/6 bridged @2Ω)
Adjustable Crossover    Yes
