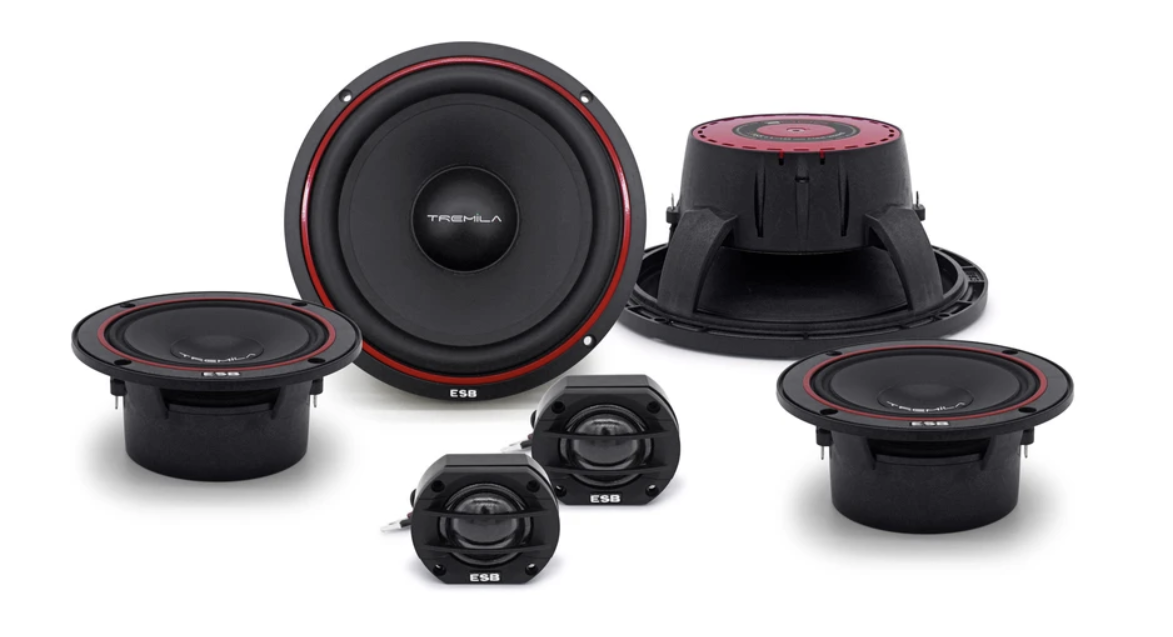

ESB Audio 3.6K3 3-Way Speaker System

Product highlights:

• 3.28, 1.1″/28 mm Dome Tweeter
• Torcon® soft dome
• High-loss damping suspension
• N42 neodymium magnet
• SVS ventilation design
• 28 mm voice coil
• Optimized computer design
• Nominal Impedance: 4 Ohm
• Nominal Power Handling: 90 Watt
• Transient Power: 180 Watt
• Freq. Response: 900 Hz ~ 25 KHz
• Sensitivity: 91 dB 1W/1m
• 3.90, 3.5″/90 mm Midrange​
• Treated paper cone
• Perbunan rubber suspension
• Y-35 ferrite magnet
• Fiberglass reinforced ABS basket
• Balanced cotton spider
• Double layer voice coil
• Nominal Impedance: 4 Ohm
• Nominal Power Handling: 60 Watt
• Transient Power: 120 Watt
• Freq. Response: 150 Hz ~ 7 KHz
• Sensitivity: 88.5 dB 1W/1m
• 3.165, 6.5″/165 mm Mid-Woofer​
• Treated paper cone
• Perbunan rubber suspension
• Y-35 ferrite magnet
• Fiberglass reinforced ABS basket
• Balanced cotton spider
• Double layer voice coil
• Nominal Impedance: 4 Ohm
• Nominal Power Handling: 120 Watt
• Transient Power: 240 Watt
• Freq. Response: 65 Hz ~ 9 KHz
• Sensitivity: 88.5 dB 1W/1m
• 3.6K3CX (optional), 3-Way Passive Crossover
• High thickness PCB copper
• In-air tweeter/mid inductor
• Oversized non-inductive resistors
• Cut out Frequency: 350 / 3 KHz
• Crossover Slope: 12 dB/Oct LP
•  6-6 dB/Oct BP, 12 dB/Oct HP
• 4-step tw/mid level adjustment
• Low Frequency section: 3.165
• Mid Frequency section: 3.90
• High Frequency section: 3.28
• Power Handling: 300 W (Peak)
