Hertz HSP1-24 A2B 2-Speaker Front Audio Upgrade Kit for select 2024-2025 vehicles from Harley Davidson
Hertz HSP1-24 A2B 2-Speaker Front Audio Upgrade Kit for select 2024-2025 vehicles from Harley Davidson
Regular price
$2,289.96
Regular price
Sale price
$2,289.96
Unit price
per
Couldn't load pickup availability
Hertz HSP1-24 A2B

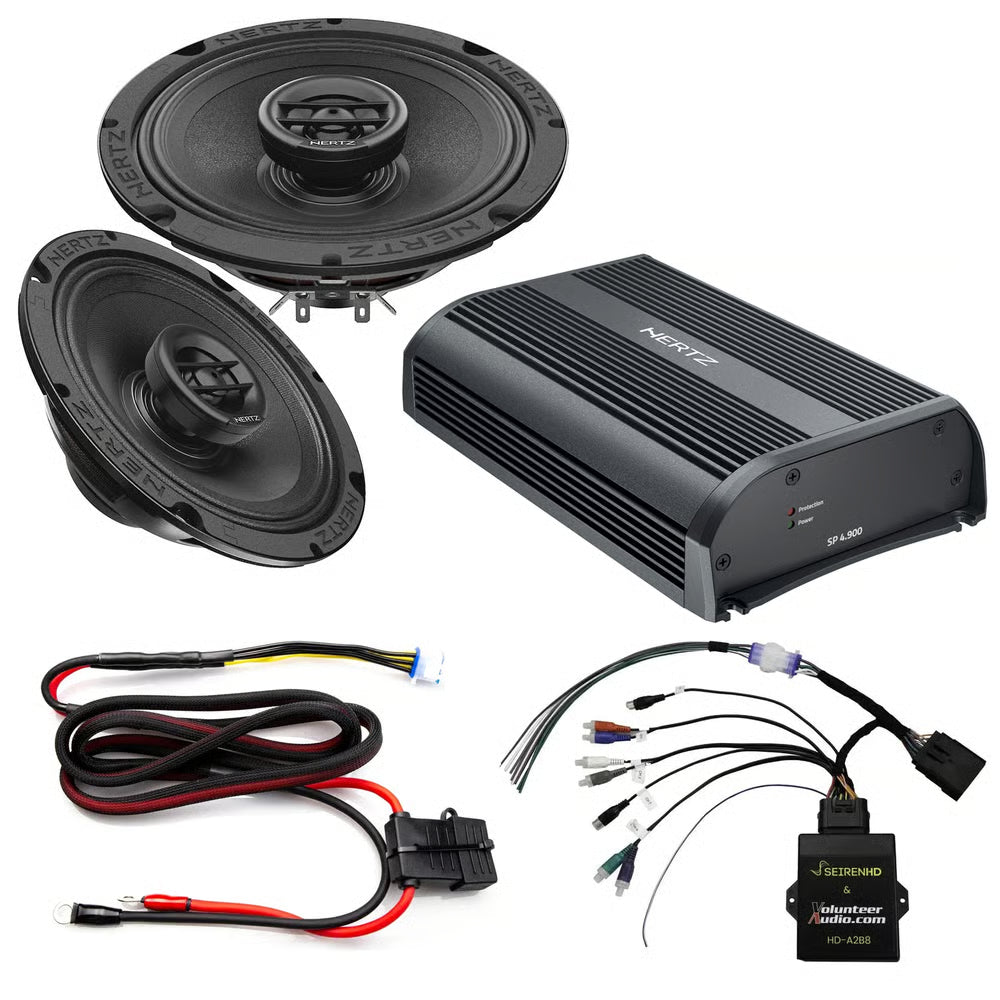

This Hertz Harley-Davidson audio upgrade delivers bold, high-output sound with 6.5" coaxial speakers powered by a compact 4-channel amplifier, all designed to fit perfectly in factory fairing locations. Featuring a plug-and-play wiring harness and advanced HD A2B interface module, it seamlessly integrates with the bike’s factory infotainment system while retaining key features like fader control, DSP settings, and navigation prompts—giving you a clean, powerful, and fully compatible audio enhancement built for the ride.
Product Details:
- System includes 6.5" coaxial speakers and 4-channel amplifier
- Also includes amplifier wiring harness and interface module for direct installation
- Designed for Harley-Davidson's front or fairing speaker locations
- Engineered to match and compliment the factory fit and finish of your vehicle
- Plug and Play design for easy installation
- Authorized Internet Dealer
- 1-year Manufacturer's Warranty
- Compatible with select 2024-2025 vehicles from Harley Davidson
Hertz SX 165 NEO 6.5" Coaxial Speakers
- 6.5" SPL Show Series Coaxial Speakers
- Power Handling:
- Peak: 400 watts per pair / 200 watts each
- RMS: 200 watts per pair / 100 watts each
- Water-repellent Pressed Paper cone material
- Rubber speaker surround material
- 1.4" PEI (Polyetherimide) Dome tweeters with N38H neodymium magnets
- Resettable solid-state tweeter protection circuit
- 1.5" double-layer copper voice coil, wound on polyamide former
- Special Neodymium N38 H magnet motor structure
- Double fast on terminals for daisy-chaining of multiple units
- Impedance: 4 ohm
- Frequency Response: 100 - 20000 Hz
- Sensitivity: 96.5 dB
- MFR #: SX 165 NEO
Hertz SP 4.900 4-Channel Amplifier
- Class D 2 ohm Stable 4-Channel Amplifier
- Power Specifications
- 4 ohm: 160 watts x 4 channel
- 2 ohm: 250 watts x 4 channel
- Bridged @ 4 ohm: 500 watts x 2 channel
- Total RMS power output: 1000 watts
- LED Power/Protect Light
- CEA-2006 compliant amplifier
- Ultra-compact size for easy installation
- IP55 dust- and water-protection rating
- Pulse Width Modulated MOSFET power supply
- Speaker-level (high-level) inputs
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Frequency Response: 10 - 35000 Hz
- Total Harmonic Distortion (THD): 1%
- Signal to Noise Ratio: 105 dB
- Variable low-pass filter: 50 - 5000 Hz
- Variable high-pass filter: 50 - 5000 Hz
- Variable Bass Boost: 0 - 8 dB
- MFR #: SP 4.900
Hertz HD A2B Interface Module
- Replaces factory amplifier
- Includes easy plug and play connection cable
- Uses the same A2B chip for seamless integration into the original system
- Supports factory infotainment updates
- Retains fader, EQ selection with DSP profiles, speed-controlled volumes
- Also retains navigation announcement features
- Built-in 31-band equalizer with 7-band parametric global equalizer
- MFR #: HD A2B
Hertz HHP 14 Power and Ground Wiring
- Power and ground wiring cable
- Made with high-quality copper wire construction
- Color coded wires for easy installation
- Plug and play wires, no cutting or modification required
- MFR #: HHP 14
