PAC HDK001X Dash and Wiring Kit Install and connect a single-DIN receiver in select 1998-2013 Harley-Davidson models (Black)

Product highlights:

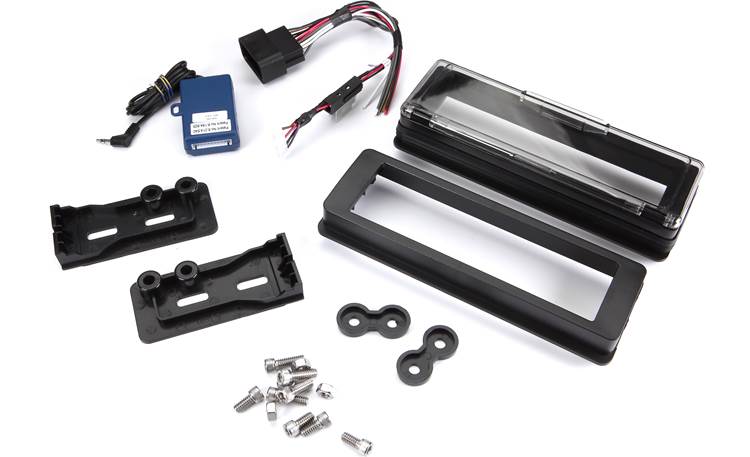

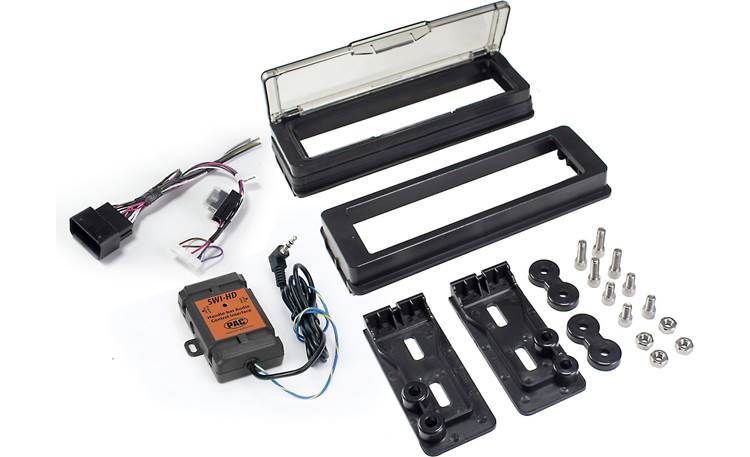

Harley Davidson Radio Replacement Kit: The PAC HDK001K radio replacement kit makes it possible for Harley Davidson motorcycle enthusiasts to integrate an aftermarket radio into their ride. This Harley Davidson radio replacement kit includes a pre-programmed interface to retain the factory handlebar audio controls, installation harness, two options of radio housings for the aftermarket head unit installation, and mounting hardware.

Compatibility: The PAC HDK001X is compatible with select 1998-2013 Harley-Davidson motorcycles and most aftemarket radios with a wired remote input that are steering wheel control ready.

• VehicleThe PAC HDK001X is compatible with select 1998-2013 Harley-Davidson motorcycles (FL models with factory fairings). The PAC HDK001X does not retain rear speakers; these will need to be hard wired.
• Radio: The aftermarket radio must be equipped with a wired remote input (3.5mm headphone style jack or Blue/Yellow wire) to be compatible. Not compatible with Sony XAV series head units; Kenwood KDC-X598, KDC-BT318U, KDCBT-758-HD, KDCBT-558U and KDC-X798 head units, and Alpine UTE-73BT, CDE-172BT, CDE-173BT and CDE-175BT head units.

Radio Housing: The PAC HDK001X comes with two radio mounting kits that will fit most single-DIN aftermarket head units. One of the mounting kits features a hinged tinted/UV protective cover, while the other mounting kit does not.

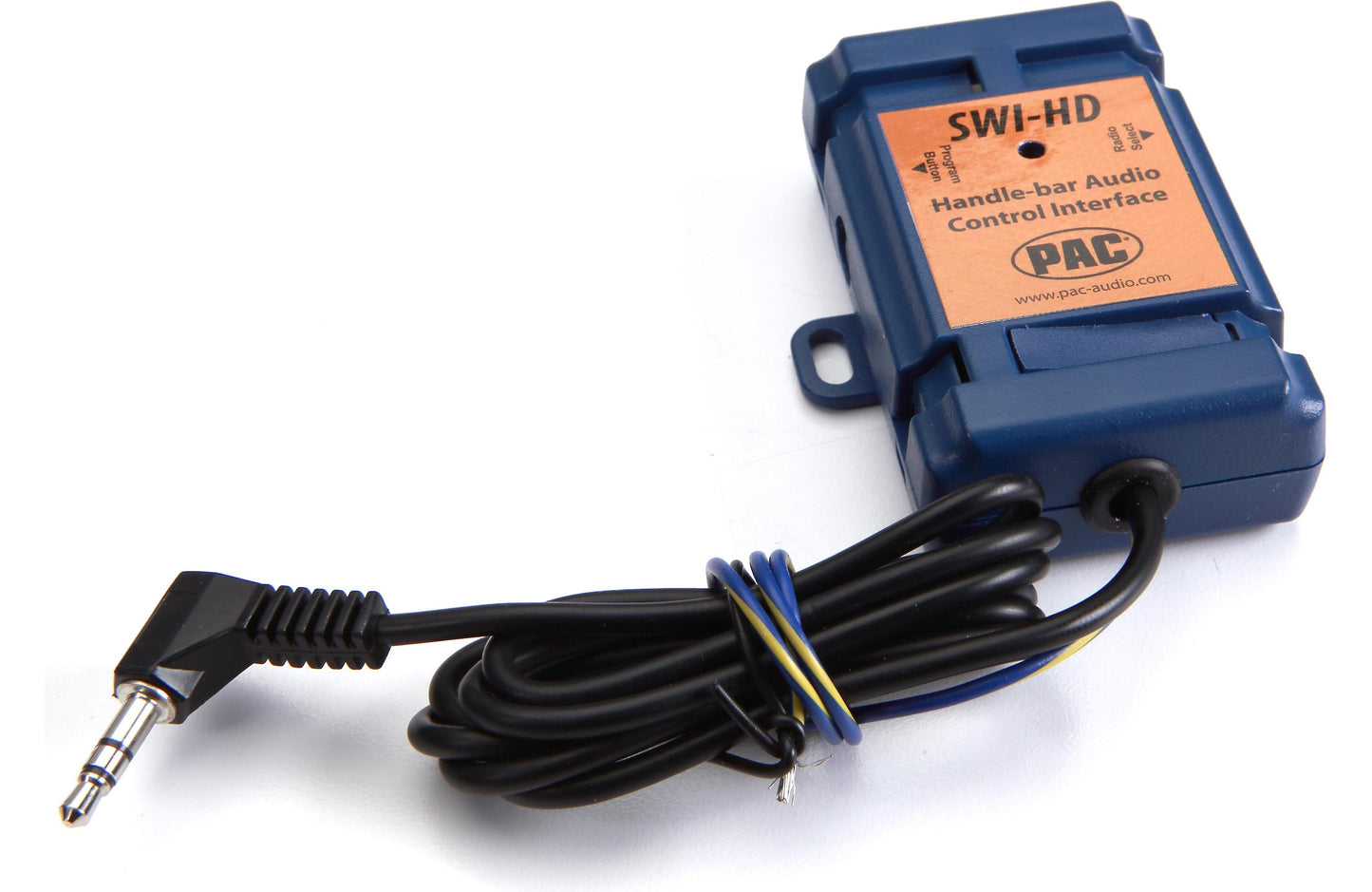

Retains Handlebar Audio Controls: The included SWI-HD interface module allows you to retain your Harley Davidson's handlebar audio controls. The included SWI-HD interface module is compatible with Alpine, Clarion, Dual, Kenwood, Jensen, JVC, Pioneer, Sony, & Valor aftermarket head unit's that features a SWC input (3.5mm) or SWC wire (Blue/Yellow). The interface comes pre-programmed, but can also be reconfigured.

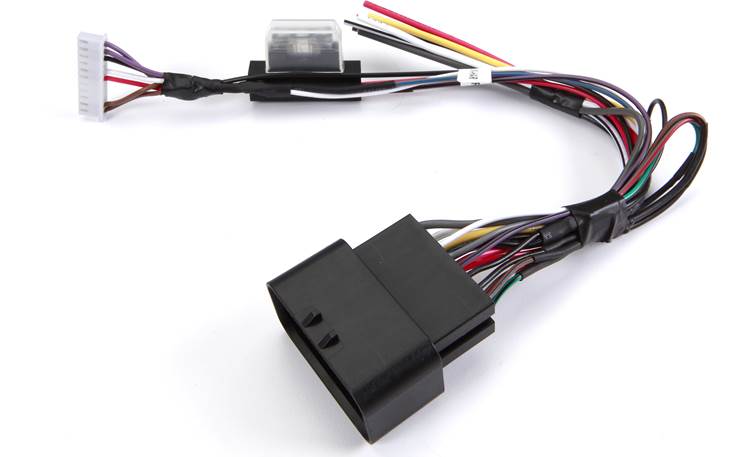

Wiring Harness: The PAC HDK001X comes with a wiring harness which plugs directly into the included interface module and your Harley Davidson's factory radio plug. You will need to hard-wire the following seven wires of the harness to your new aftermarket head unit's wiring harness.
